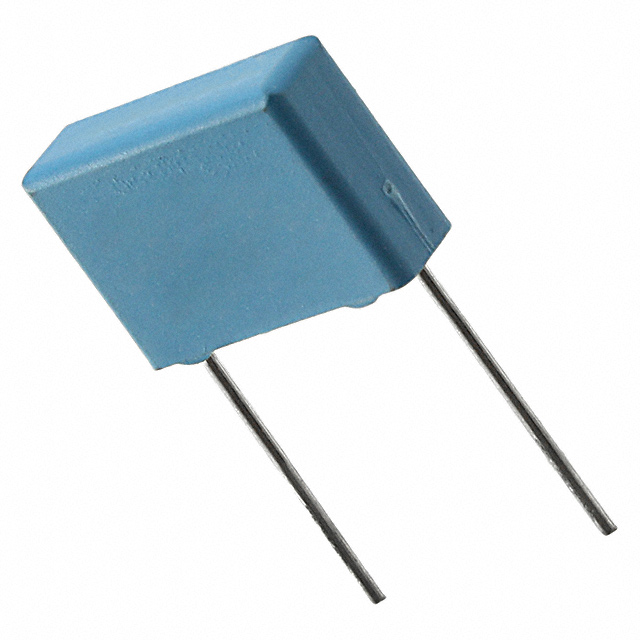

PHE820MB5100MR17

Obsolete

KEMET

CAP FILM 10000PF 20% 275VAC RAD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PHE820MB5100MR17

Obsolete

KEMET

CAP FILM 10000PF 20% 275VAC RAD

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PHE820MB5100MR17

Applications	EMI, RFI Suppression
Capacitance	10000 pF
Dielectric Material	Polyester, Metallized
Height - Seated (Max) [Max]	0.413 in
Height - Seated (Max) [Max]	10.5 mm
Lead Spacing	15 mm
Lead Spacing	0.591 in
Mounting Type	Through Hole
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Package / Case	Radial
Ratings	X2
Size / Dimension [x]	0.709 in
Size / Dimension [x]	18 mm
Size / Dimension [y]	0.217 in
Size / Dimension [y]	5.5 mm
Termination	PC Pins
Tolerance	20 %
Voltage Rating - AC	275 V

PHE820 Series

Part	Dielectric Material	Ratings	Tolerance	Capacitance	Lead Spacing	Lead Spacing	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Applications	Voltage Rating - AC	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Termination	Mounting Type	Voltage Rating - DC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]
KEMET PHE820MB5100MR17	Polyester Metallized	X2	20 %	10000 pF	15 mm	0.591 in	Radial	100 °C	-40 °C	0.413 in	10.5 mm	EMI RFI Suppression	275 V	0.217 in	5.5 mm	0.709 in	18 mm	PC Pins	Through Hole
KEMET PHE820MD6220MR06L2	Polyester Metallized	X2	20 %	0.22 µF	22.5 mm	0.886 in	Radial	100 °C	-40 °C	0.728 in	18.5 mm	EMI RFI Suppression	275 V	0.354 in	9 mm	1.024 in	26 mm	PC Pins	Through Hole	760 V
KEMET PHE820EB6100MR17	Polyester Metallized	X2	20 %	100000 pF	15 mm	0.591 in	Radial	100 °C	-40 °C	0.63 in	16 mm	EMI RFI Suppression	300 V	0.335 in	8.5 mm	0.709 in	18 mm	PC Pins	Through Hole
KEMET PHE820MR7220MR06L2	Polyester Metallized	X2	20 %	2.2 µF	37.5 mm	1.476 in	Radial	100 °C	-40 °C			EMI RFI Suppression	275 V	0.748 in	19 mm	1.614 "	41 mm	PC Pins	Through Hole	760 V	1.417 in	36 mm
KEMET PHE820EB5680MR17	Polyester Metallized	X2	20 %	0.068 µF	15 mm	0.591 in	Radial	100 °C	-40 °C			EMI RFI Suppression	300 V	0.295 in	7.5 mm	0.709 in	18 mm	PC Pins	Through Hole	760 V	0.571 in	14.5 mm
KEMET PHE820MB5220MR17	Polyester Metallized	X2	20 %	0.022 µF	15 mm	0.591 in	Radial	100 °C	-40 °C	0.413 in	10.5 mm	EMI RFI Suppression	275 V	0.217 in	5.5 mm	0.709 in	18 mm	PC Pins	Through Hole
KEMET PHE820ED6330MR06L2	Polyester Metallized	X2	20 %	0.33 µF	22.5 mm	0.886 in	Radial	100 °C	-40 °C	0.846 in	21.5 mm	EMI RFI Suppression	300 V	0.433 in	11 mm	1.024 in	26 mm	PC Pins	Through Hole	760 V
KEMET PHE820EF6680MR06L2	Polyester Metallized	X2	20 %	680 nF	27.5 mm	1.083 in	Radial	100 °C	-40 °C	0.965 "	24.5 mm	EMI RFI Suppression	300 V	0.571 in	14.5 mm	1.24 in	31.5 mm	PC Pins	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.15
		10	$ 0.86
		50	$ 0.79
		100	$ 0.65

Description

General part information

PHE820 Series

10000 pF Film Capacitor 275V Polyester, Metallized Radial
