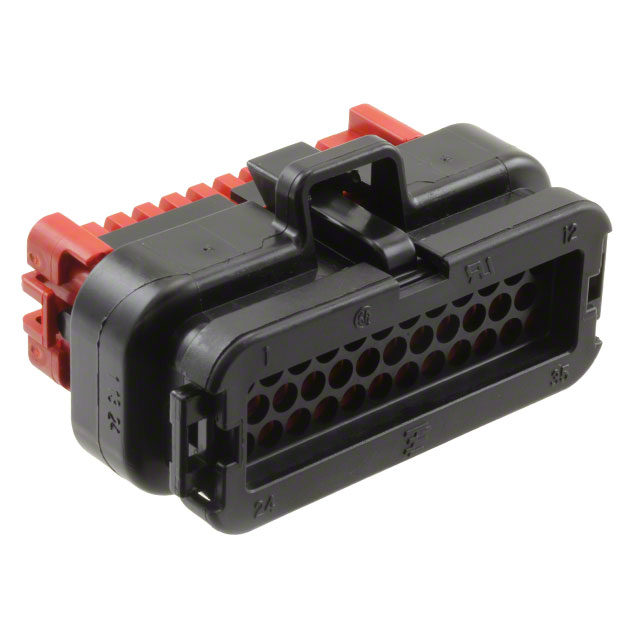

776164-1

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 35 POS 4MM CRIMP ST CABLE MOUNT BLACK PACKAGE AUTOMOTIVE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet ICT Terminals and Connectors Catalogue +10

776164-1

Active

TE Connectivity Raychem Cable Protection

CONN HOUSING PL 35 POS 4MM CRIMP ST CABLE MOUNT BLACK PACKAGE AUTOMOTIVE

Deep-Dive with AI

DocumentsDatasheet ICT Terminals and Connectors Catalogue +10

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	776164-1

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polybutylene Terephthalate (PBT)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	35
Number of Rows	3
Pitch [x]	4 mm
Pitch [x]	0.157 in
Row Spacing	0.157 in
Row Spacing	4 mm

AMPSEAL Series

Automotive Connectors HDR 23P R/A AU NAT

Part	Pitch [x]	Pitch [x]	Contact Termination	Contact Type	Number of Positions	Fastening Type	Insulation Material	Mounting Type	Row Spacing	Row Spacing	Connector Type	Note	Number of Rows	Pitch - Mating	Pitch - Mating	Applications	Voltage Rating	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Shape	Termination	Number of Positions Loaded	Contact Finish - Mating	Insulation Color	Style	Features	Current Rating (Amps)	Color	Torque - Screw	Torque - Screw	Clamp Material - Plating	Wire Termination	Current	Positions Per Level	Screw Material - Plating	Screw Thread	Number of Levels	Voltage	Wire Gauge [Min]	Wire Gauge [Max]	Mating Orientation	Contact Material - Plating
TE Connectivity Raychem Cable Protection 2371884-4
TE Connectivity Raychem Cable Protection 776164-6	4 mm	0.157 in	Crimp	Female Socket	35	Latch Lock	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	0.157 in	4 mm	Plug	Contacts Not Included	3
TE Connectivity Raychem Cable Protection 1-776228-2				Male Pin	23	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	125 °C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All	Gold-Palladium	Natural	Board to Cable/Wire	Mounting Flange Sealed	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 776164-1	4 mm	0.157 in	Crimp	Female Socket	35	Latch Lock	Polybutylene Terephthalate (PBT)	Free Hanging (In-Line)	0.157 in	4 mm	Plug	Contacts Not Included	3																			Black
TE Connectivity Raychem Cable Protection 1776266-5	5 mm	0.197 in						Through Hole											105 ░C	-55 °C										Interlocking (Side)		Green	0.51 Nm	4.5 Lb-In	Stainless Steel	Screw - Leaf Spring Wire Guard	10 A	5	Steel Galvanized - Chromate Plated	M2.6	1	300 V	14 AWG	22 AWG	Horizontal with Board	Brass - Copper Tin Plated
TE Connectivity Raychem Cable Protection 776266-2				Male Pin	14	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	105 ░C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All		Natural	Board to Cable/Wire	Board Guide Sealable	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 776262-1				Male Pin	14	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	105 ░C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All		Black	Board to Cable/Wire	Mounting Flange Sealed	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 1-776180-2				Male Pin	35	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Right Angle Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	125 °C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All	Gold-Palladium	Natural	Board to Cable/Wire	Board Guide Sealable	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 1-776231-5				Male Pin	35	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	125 °C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All	Gold-Palladium	Blue	Board to Cable/Wire	Mounting Flange Sealed	Varies by Wire Gauge
TE Connectivity Raychem Cable Protection 776275-2				Male Pin	8	Locking Ramp	Polybutylene Terephthalate (PBT) Glass Filled	Panel Mount Through Hole			Header		3	0.157 "	4 mm	Automotive Industrial	250 VAC	Brass	105 ░C	-40 °C	Shrouded - 4 Wall	0.157 in	4 mm	Circular	Solder	All		Natural	Board to Cable/Wire	Mounting Flange Sealable	Varies by Wire Gauge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	28	$ 7.63
		56	$ 7.36
		112	$ 7.23
		252	$ 7.08
		504	$ 7.01
		1008	$ 6.75
Digikey	Bulk	1	$ 13.14
		10	$ 11.39
		28	$ 11.02

Description

General part information

AMPSEAL Series

Automotive Connectors HDR 23P R/A AU NAT

Documents

Technical documentation and resources

Datasheet

AMPSEAL Automotive Plug Assemblies 776268-[ ], 776273-[ ], 770680-[ ], and 776164-[ ]
