QSE-042-01-F-D-DP-A-TR

Active

Samtec Inc.

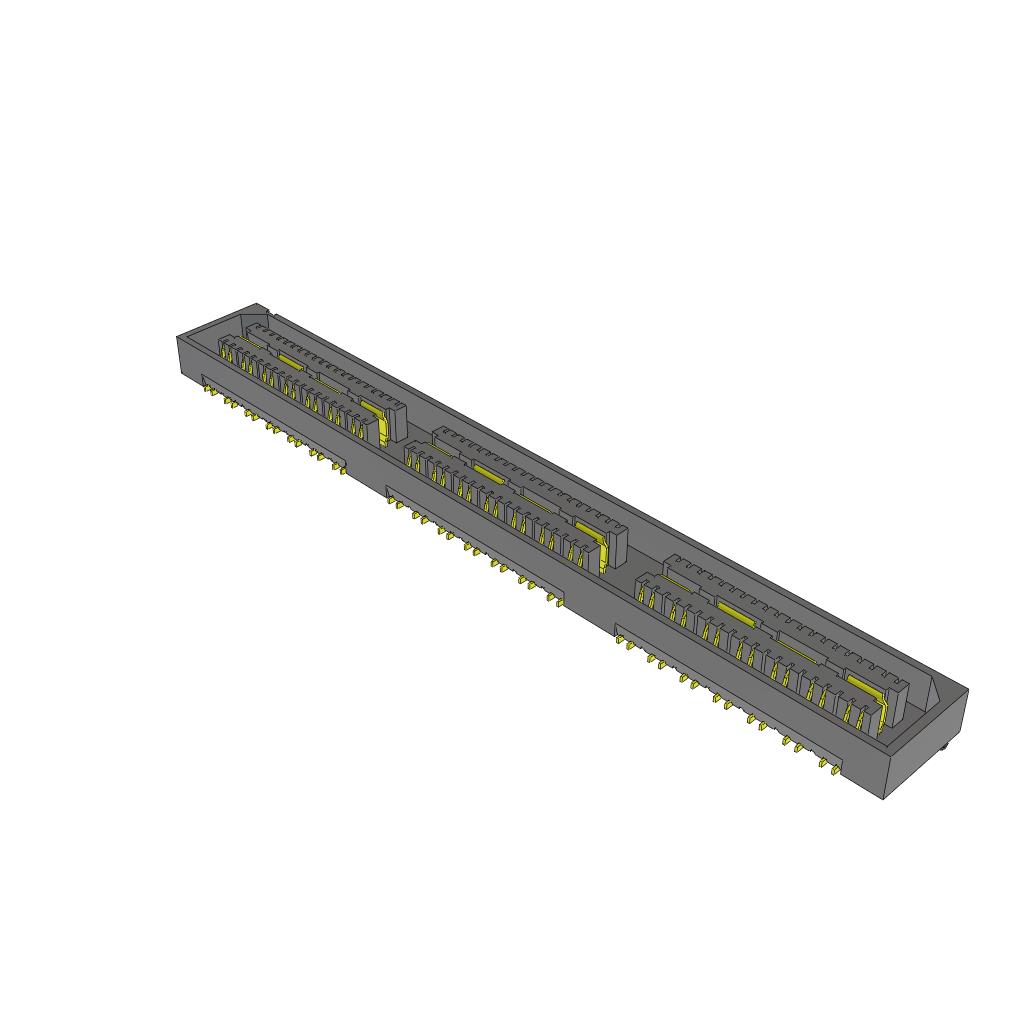

CONN DIFF ARRAY RCP 84P SMD GOLD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsQSE-014-01-C-D-DP-A-K Datasheet 02 QSE Series Other Related Documents 01 +2

QSE-042-01-F-D-DP-A-TR

Active

Samtec Inc.

CONN DIFF ARRAY RCP 84P SMD GOLD

Deep-Dive with AI

DocumentsQSE-014-01-C-D-DP-A-K Datasheet 02 QSE Series Other Related Documents 01 +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QSE-042-01-F-D-DP-A-TR

Connector Type	Differential Pair Array, Female
Contact Finish	Gold
Contact Finish Thickness	3 Áin
Contact Finish Thickness	0.076 Ám
Height Above Board	3.25 mm
Height Above Board	0.128 in
Mated Stacking Heights	5 mm, 25 mm, 8 mm, 16 mm, 11 mm, 14 mm, 19 mm
Mounting Type	Surface Mount
Number of Positions	84
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

QSE-042 Series

Part	Height Above Board	Height Above Board	Number of Rows	Number of Positions	Pitch [x]	Pitch [x]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Connector Type	Mated Stacking Heights	Features
Samtec Inc. QSE-042-01-F-D-DP-A-TR	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	3 Áin	0.076 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
Samtec Inc. QSE-042-01-H-D-DP-A-K	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	30 Áin	0.76 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Pick and Place
Samtec Inc. QSE-042-01-F-D-DP-A-RT1-K	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	3 Áin	0.076 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mounting Flange Pick and Place
Samtec Inc. QSE-042-01-L-D-DP-A-RT1-K-TR	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	10 Áin	0.25 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mounting Flange Pick and Place
Samtec Inc. QSE-042-01-F-D-DP-A-RT1	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	3 Áin	0.076 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mounting Flange
Samtec Inc. QSE-042-01-F-D-DP-A-GP	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	3 Áin	0.076 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Board Guide Ground Bus (Plane) Mating Flange
Samtec Inc. QSE-042-01-L-D-DP-GP	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	10 Áin	0.25 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane) Mating Flange
Samtec Inc. QSE-042-01-F-D-DP	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	3 Áin	0.076 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm	Ground Bus (Plane)
Samtec Inc. QSE-042-01-H-D-DP-EM2			2	84	0.8 mm	0.031 in	Gold	Board Edge Straddle Mount	30 Áin	0.76 Ám	Differential Pair Array Female		Ground Bus (Plane)
Samtec Inc. QSE-042-01-H-D-DP-A-TR	3.25 mm	0.128 in	2	84	0.8 mm	0.031 in	Gold	Surface Mount	30 Áin	0.76 Ám	Differential Pair Array Female	5 mm 8 mm 11 mm 14 mm 16 mm 19 mm 25 mm
