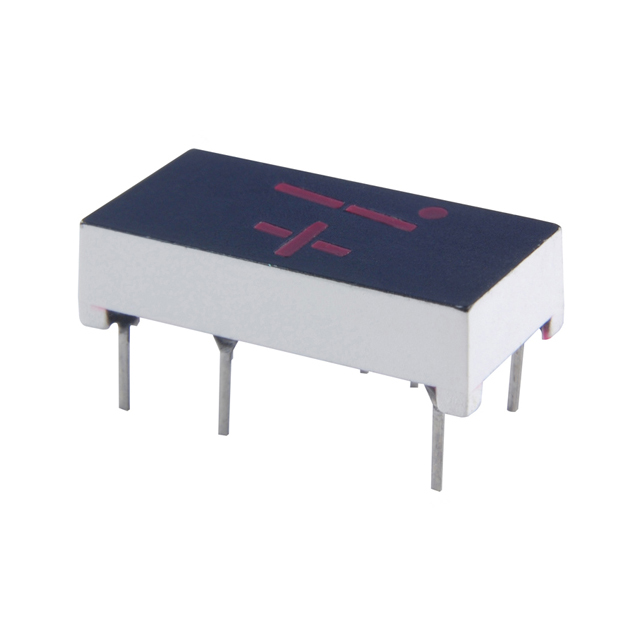

NTE3065

Active

NTE Electronics, Inc

7 SEG NUMERIC LED DISPLAY, 8MM,

Search across all available documentation for this part.

Active

NTE Electronics, Inc

7 SEG NUMERIC LED DISPLAY, 8MM,

Technical Specifications

Parameters and characteristics for this part

Part	Wavelength - Peak	Common Pin	Digit/Alpha Size	Digit/Alpha Size	Color	Power Dissipation (Max) [Max]	Millicandela Rating	Current - Test	Voltage - Forward (Vf) (Typ)	Number of Characters [custom]	Display Type	Digit/Alpha Size [custom]
NTE Electronics, Inc NTE3065	660 nm	Common Anode	0.3 in	7.62 mm	Red	300 mW	0.35 mcd	20 mA	2 V
NTE Electronics, Inc NTE3064	585 nm	Common Anode	0.3 in	7.62 mm	Yellow		2 mcd	10 mA	2.1 V	1	7-Segment
NTE Electronics, Inc NTE3068	660 nm	Common Anode		10.16 mm	Red	100 mW	10.5 mcd	20 mA	1.85 V	1	7-Segment	0.4 in
NTE Electronics, Inc NTE3062	630 nm	Common Anode	0.3 in	7.62 mm		80 mW	10.5 mcd	20 mA	2.1 V	1	7-Segment

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Display Modules - LED Character and Numeric Red Character Common Anode 2V (Max) 20mA

Technical documentation and resources

No documents available
