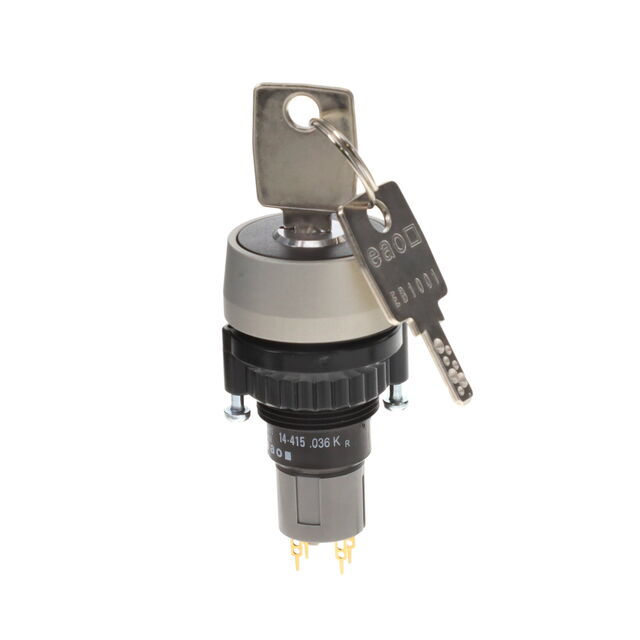

14-415.036K

Active

EAO

SWITCH KEYLK 2POS DPST 100MA 42V

Search across all available documentation for this part.

Active

EAO

SWITCH KEYLK 2POS DPST 100MA 42V

Technical Specifications

Parameters and characteristics for this part

Specification	14-415.036K

Actuator Type	Flat Key
Angle of Throw	90 °
Circuit	DPST-NO/NC
Contact Timing	Not Specified
Current Rating (Amps)	100 mA
Depth Behind Flange	41.5 mm
Features	IP65
Key Removable Positions	1 only
Mechanical Life	1000000 Cycles
Number of Positions	2
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [diameter]	30.5 mm
Switch Function	On-Off, Off-On
Termination Style	PC Pin, Solder Lug
Voltage Rating - AC	42 V
Voltage Rating - DC	42 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

SWITCH KEYLK 2POS DPST 100MA 42V

Part	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Key Removable Positions	Switch Function	Number of Positions	Actuator Type	Mechanical Life	Voltage Rating - AC	Contact Timing	Voltage Rating - DC	Depth Behind Flange	Features	Angle of Throw	Termination Style	Circuit	Operating Temperature [Max]	Operating Temperature [Min]
EAO 14-415.036K	100 mA	30.5 mm	1 only	Off-On, On-Off	2	Flat Key	1000000 Cycles	42 V	Not Specified	42 V	41.5 mm	IP65	90 °	PC Pin, Solder Lug	DPST-NO/NC	55 °C	-25 °C

General part information

Keylock Switch 2 Position DPST-NO/NC 100mA (AC/DC) 42 VAC 42 VDC Panel Mount
