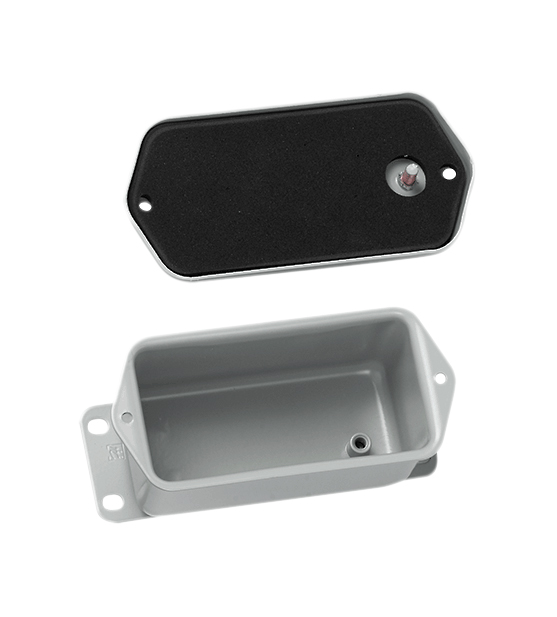

Specification	A402DSC

Area (L x W)	8.04 in²
Color	Gray
Container Type	Junction Box
Design	Cover Included
Features	Wall Mount, Sealing Gasket, PCB Supports
Height	2.008 in
Material	Metal, Steel
Ratings	UL-508A, 12, 13, NEMA 4, 6, IP67
Size / Dimension Length	4.016 in
Size / Dimension Width	2.008 in
Thickness	16 Gauge
Thickness	16 Gauge
Weight	0.8 lb

A402 Series

Part	Weight	Color	Height	Design	Features	Container Type	Size / Dimension Width	Size / Dimension Length	Area (L x W)	Ratings	Thickness	Thickness	Material
Hoffman Enclosures, Inc. A402DSC	0.8 lb	Gray	2.008 in	Cover Included	PCB Supports Sealing Gasket Wall Mount	Junction Box	2.008 in	4.016 in	8.04 in²	12 13 6 IP67 NEMA 4 UL-508A	16 Gauge	16 Gauge	Metal Steel
