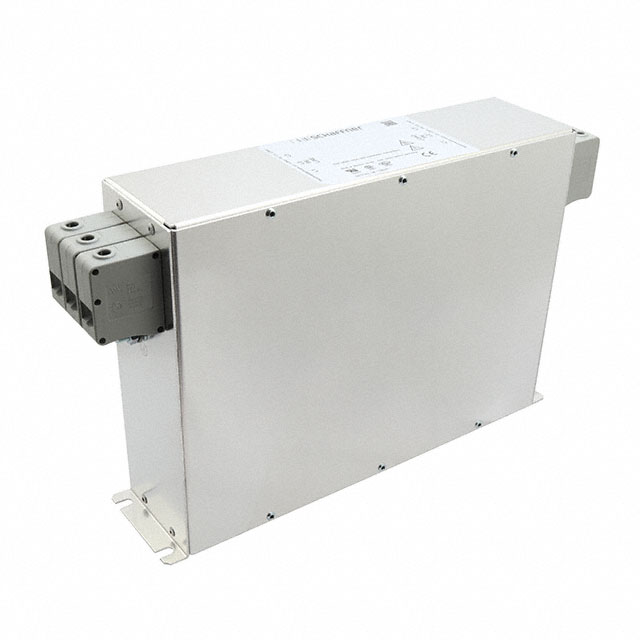

Specification	FN258HV-75-34

Applications	Inverters, Power Drive Systems
Approval Agency	CSA, ENEC, UR
Configuration	Two Stage
Current	75 A
Filter Subtype	Delta
Filter Type	Three Phase
Frequency - Operating (Max)	60 Hz
Frequency - Operating (Min)	0 Hz
Mounting Type	Chassis Mount
Operating Temperature (Max)	100 °C
Operating Temperature (Min)	-25 °C
Termination Style	Terminal Block
Voltage - Rated AC (Phase to Ground/Neutral)	400 V
Voltage - Rated AC (Phase to Phase)	690 V

FN258 Series

Part	Mounting Type	Operating Temperature (Min)	Operating Temperature (Max)	Termination Style	Voltage - Rated AC (Phase to Phase)	Filter Subtype	Filter Type	Approval Agency	Configuration	Frequency - Operating (Max)	Current	Applications	Voltage - Rated AC (Phase to Ground/Neutral)
TE Connectivity AMP Connectors FN258HV-55-34	Chassis Mount	-25 °C	100 °C	Terminal Block	690 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	55 A	Inverters Power Drive Systems	400 V
TE Connectivity AMP Connectors FN258-250-40	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	250 A	Inverters Power Drive Systems	277 V
TE Connectivity AMP Connectors FN258HV-16-29	Chassis Mount	-25 °C	100 °C	Terminal Block	690 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	16 A	Inverters Power Drive Systems	400 V
TE Connectivity AMP Connectors FN258-30-33	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	30 A	Inverters Power Drive Systems	277 V
TE Connectivity AMP Connectors FN258-180-07	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	180 A	Inverters Power Drive Systems	277 V
TE Connectivity AMP Connectors FN258-250-40	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	250 A	Inverters Power Drive Systems	277 V
TE Connectivity AMP Connectors FN258-42-07	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	42 A	Inverters Power Drive Systems	277 V
TE Connectivity AMP Connectors FN258HV-30-33	Chassis Mount	-25 °C	100 °C	Terminal Block	690 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	30 A	Inverters Power Drive Systems	400 V
TE Connectivity AMP Connectors FN258HV-42-33	Chassis Mount	-25 °C	100 °C	Terminal Block	690 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	42 A	Inverters Power Drive Systems	400 V
TE Connectivity AMP Connectors FN258-30-33	Chassis Mount	-25 °C	100 °C	Terminal Block	480 V	Delta	Three Phase	CSA ENEC UR	Two Stage	60 Hz	30 A	Inverters Power Drive Systems	277 V
