796981-4
ActiveTE Connectivity AMP Connectors

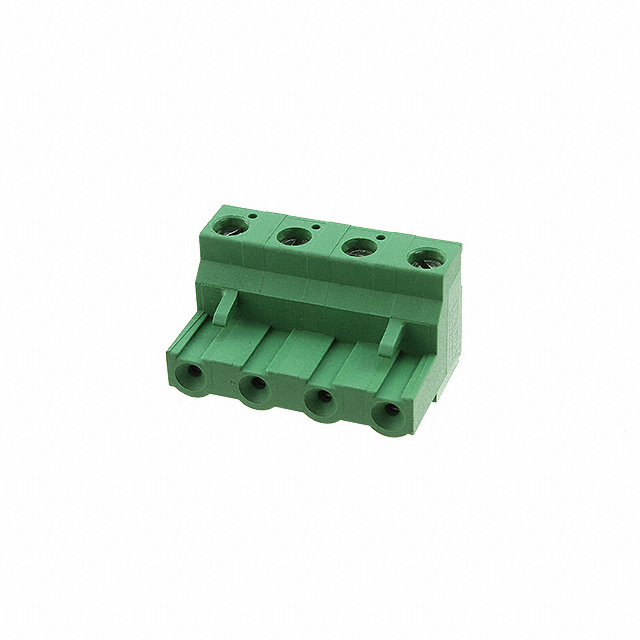

TERM BLOCK PLUG 4POS STR 7.62MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796981-4
ActiveTE Connectivity AMP Connectors
TERM BLOCK PLUG 4POS STR 7.62MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796981-4 | 796981 Series |
|---|---|---|
| Color | Green | Green |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Insulation Height | 0.61 in | 0.61 in |
| Insulation Height | 15.49 mm | 15.49 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 4 | 4 - 10 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 0.3 in | 0.3 in |
| Pitch [x] | 7.62 mm | 7.62 mm |
| Positions Per Level | 4 | 3 - 10 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm˛ [Max] | 3 mm˛ | 3 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.05 mm˛ | 0.05 mm˛ |
| Wire Gauge or Range - mm² | - | 0.05 mm² |
| Wire Gauge or Range - mm² | - | 3 mm² |
| Wire Strip Length [Max] | 7.5 mm | 7.5 mm |
| Wire Strip Length [Min] | 6 mm | 6 mm |
796981 Series
TERM BLOCK PLUG 4POS STR 7.62MM
| Part | Voltage - UL | Color | Number of Positions | Material Flammability Rating | Screw Size | Number of Levels | Torque - Screw | Torque - Screw | Pitch [x] | Pitch [x] | Positions Per Level | Contact Material | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Wire Strip Length [Max] | Wire Strip Length [Min] | Mounting Type | Type | Insulation Height | Insulation Height | Operating Temperature [Min] | Operating Temperature [Max] | Termination Style | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] | Contact Mating Finish | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796981-4 | 300 V | Green | 4 | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 4 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | 3 mm˛ | 0.05 mm˛ | Tin | ||
TE Connectivity AMP Connectors 796981-6 | 300 V | Green | 6 | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 6 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | 3 mm˛ | 0.05 mm˛ | Tin | ||
TE Connectivity AMP Connectors 796981-8 | 300 V | Green | 8 | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 8 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | Tin | 0.05 mm² | 3 mm² | ||
TE Connectivity AMP Connectors 796981-5 | 300 V | Green | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 5 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | Tin | 0.05 mm² | 3 mm² | |||
TE Connectivity AMP Connectors 796981-9 | 300 V | Green | 9 | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 9 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | Tin | 0.05 mm² | 3 mm² | ||
TE Connectivity AMP Connectors 796981-3 | 300 V | Green | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 3 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | Tin | 0.05 mm² | 3 mm² | |||
TE Connectivity AMP Connectors 1-796981-0 | 300 V | Green | 10 | UL94 V-0 | M3 | 1 | 0.79 Nm | 7 Lb-In | 0.3 in | 7.62 mm | 10 | Phosphor Bronze | 30 AWG | 12 AWG | 7.5 mm | 6 mm | Free Hanging (In-Line) | Plug, Female Sockets | 0.61 in | 15.49 mm | -40 °C | 110 °C | Screw - Rising Cage Clamp | 3 mm˛ | 0.05 mm˛ | Tin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
796981 Series
4 Position Terminal Block Plug, Female Sockets 0.300" (7.62mm) 180° Free Hanging (In-Line)
