SC000264
ActiveMcGill Microwave Systems

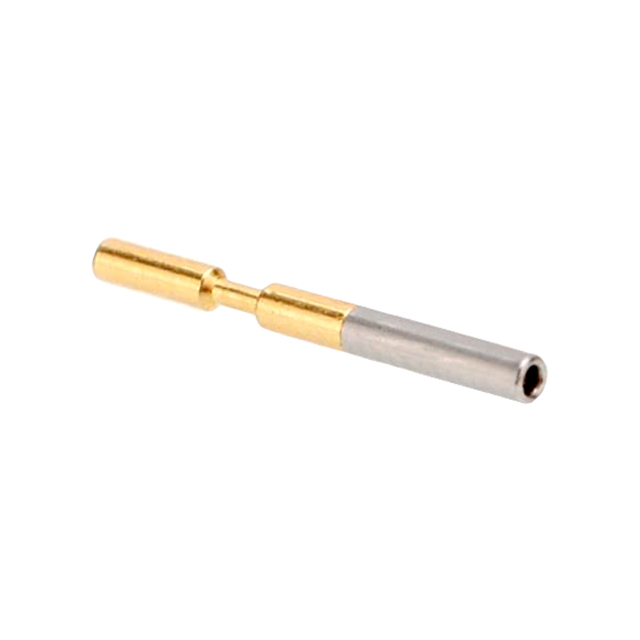

M23, HYBRID, 0.7MM SOCKET 22-28AWG /BAG ROHS COMPLIANT: YES
SC000264
ActiveMcGill Microwave Systems
M23, HYBRID, 0.7MM SOCKET 22-28AWG /BAG ROHS COMPLIANT: YES
Description
General part information
SC0002 Series
Socket Contact 22-28 AWG Size 0.7mm Crimp Gold
Technical Specifications
Parameters and characteristics for this part
| Specification | SC000264 |
|---|---|
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Contact Size | 0.7 mm |
| Contact Termination | Crimp |
| Contact Type | Socket |
| Termination Finish | Gold |
| Type | Machined |
| Wire Gauge or Range - AWG (Max) | 28 AWG |
| Wire Gauge or Range - AWG (Min) | 22 AWG |
