6282-6PG-311

Active

Conxall/Switchcraft

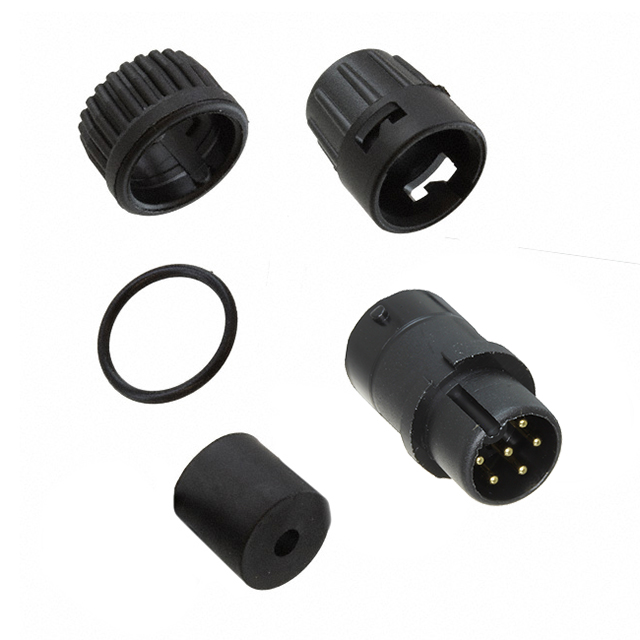

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6282-6PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 6P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	6282-6PG-311	6282-6PG Series

Applications	Automotive, Communication Systems, Instrumentation	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon	Polyamide (PA), Nylon
Cable Opening	-	0.21 - 0.25 in
Cable Opening	-	0.19 - 0.22 in
Cable Opening	-	4.83 - 5.59 mm
Cable Opening	-	5.33 - 6.35 mm
Cable Opening	-	0.16 in
Cable Opening	-	0.18 in
Cable Opening	-	4.06 mm
Cable Opening	-	4.57 mm
Cable Opening [diameter]	2.29 mm	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in	0.09 - 0.14 in
Cable Opening [diameter]	3.56 mm	3.56 mm
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Brass	Brass
Current Rating (Amps)	Varies by Wire Gauge	Varies by Wire Gauge
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	Weathertight	Weathertight
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Positions	6	6
Operating Temperature [Max]	115 °C	115 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 V	600 V

6282-6PG Series

CONN PLUG MALE 6P GOLD SLDR CUP

Part	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Connector Type	Contact Material	Fastening Type	Features	Contact Finish - Mating	Orientation	Current Rating (Amps)	Ingress Protection	Color	Voltage Rating	Backshell Material, Plating	Number of Positions	Mounting Type	Applications	Shielding	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]
Conxall/Switchcraft 6282-6PG-3DC	-40 °C	115 °C	Plastic	Male Pins, Plug	Brass	Bayonet Lock	Backshell	Gold	Keyed	Varies by Wire Gauge	Weathertight	Black	600 V	Nylon, Polyamide (PA)	6	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Unshielded
Conxall/Switchcraft 6282-6PG-519	-40 °C	115 °C	Plastic	Male Pins, Plug	Brass	Bayonet Lock	Backshell	Gold	Keyed	Varies by Wire Gauge	Weathertight	Black	600 V	Nylon, Polyamide (PA)	6	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Unshielded	0.21 in	0.19 in	4.83 mm	5.33 mm
Conxall/Switchcraft 6282-6PG-516	-40 °C	115 °C	Plastic	Male Pins, Plug	Brass	Bayonet Lock	Backshell	Gold	Keyed	Varies by Wire Gauge	Weathertight	Black	600 V	Nylon, Polyamide (PA)	6	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Unshielded					0.16 in	0.18 in	4.06 mm	4.57 mm
Conxall/Switchcraft 6282-6PG-311	-40 °C	115 °C	Plastic	Male Pins, Plug	Brass	Bayonet Lock	Backshell	Gold	Keyed	Varies by Wire Gauge	Weathertight	Black	600 V	Nylon, Polyamide (PA)	6	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Unshielded									2.29 mm	0.09 in, 0.14 in	3.56 mm
Conxall/Switchcraft 6282-6PG-522	-40 °C	115 °C	Plastic	Male Pins, Plug	Brass	Bayonet Lock	Backshell	Gold	Keyed	Varies by Wire Gauge	Weathertight	Black	600 V	Nylon, Polyamide (PA)	6	Free Hanging (In-Line)	Automotive, Communication Systems, Instrumentation	Unshielded	0.25 in	0.22 in	5.59 mm	6.35 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 16.01
		10	$ 12.31
		25	$ 11.14
		50	$ 10.34
		100	$ 9.62
		250	$ 8.76
		500	$ 8.19
		1000	$ 7.67

Description

General part information

6282-6PG Series

6 Position Circular Connector Plug, Male Pins Solder Cup
