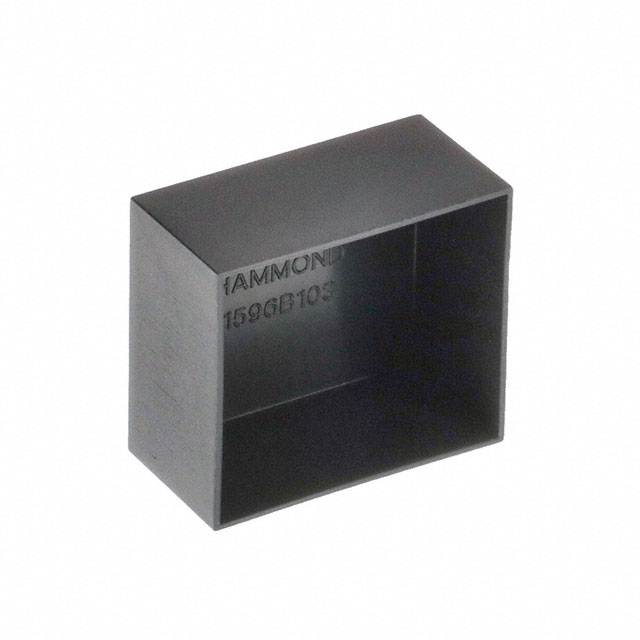

1596B103-10

Active

Hammond Manufacturing

BOX PLAS BLK 1.58L X 1.38"W 1=10

Deep-Dive with AI

Search across all available documentation for this part.

1596B103-10

Active

Hammond Manufacturing

BOX PLAS BLK 1.58L X 1.38"W 1=10

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	1596B103-10

Area (L x W)	14 cm˛, 2.17 in˛
Color	Black
Container Type	Potting, Box
Height [z]	20.1 mm
Height [z]	0.791 in
Material	Plastic
Size / Dimension [x]	1.575 in
Size / Dimension [x]	40 mm
Size / Dimension [y]	35 mm
Size / Dimension [y]	1.378 "
Thickness	0.039 in
Thickness	1 mm

1596 Series

Part	Design	Color	Thickness	Thickness	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Material	Height [z]	Height [z]	Container Type	Area (L x W)	Area (L x W)	Height [z]	Area (L x W)	Area (L x W) [custom]	Area (L x W) [custom]	Area (L x W)
Hammond Manufacturing 1596B110	Open End(s)	Black	0.04 in	1.02 mm	21.59 mm	0.55 in	13.97 mm	0.85 "	Plastic	0.46 in	11.68 mm	Box Potting	3 cm˛	0.47 in˛
Hammond Manufacturing 1596B103-10		Black	0.039 in	1 mm	40 mm	1.378 "	35 mm	1.575 in	Plastic	0.791 in	20.1 mm	Box Potting	2.17 in˛ 14 cm˛
Hammond Manufacturing 1596B115-5		Black	0.055 in	1.4 mm	89 mm	2.52 "	64 mm	3.504 in	Plastic		1.28 in	Box Potting	57 cm˛	8.83 in˛	32.51 mm
Hammond Manufacturing 1596B109-10		Black	0.035 in	0.9 mm	11.5 mm	0.453 in	11.5 mm	0.453 "	Plastic	0.354 in	9 mm	Box Potting	0.2 in˛			1.3 cm˛
Hammond Manufacturing 1596B113	Open End(s)	Black	0.04 in	1.02 mm	39.88 mm	1.57 "	39.88 mm	1.57 in	Plastic	1.15 in	29.21 mm	Box Potting					15.9 cm˛	2.46 in˛
Hammond Manufacturing 1596B112	Open End(s)	Black	0.04 in	1.02 mm	24.89 mm	0.98 in	24.89 mm	0.98 "	Plastic	0.98 in	24.89 mm	Box Potting	6.2 cm˛	0.96 in˛
Hammond Manufacturing 1596B104	Open End(s)	Black	0.04 in	1.02 mm	49.78 mm	1.57 "	39.88 mm	1.96 "	Plastic	1.18 in	29.97 mm	Box Potting	19.9 cm˛						3.08 in˛
Hammond Manufacturing 1596B101	Open End(s)	Black	0.04 in	1.02 mm	24.89 mm	0.79 "	20.07 mm	0.98 "	Plastic	0.59 "	14.99 mm	Box Potting	6.2 cm˛	0.96 in˛
Hammond Manufacturing 1596B115	Open End(s)	Black	0.04 in	1.02 mm	88.9 mm	2.52 "	64 mm	3.5 in	Plastic		1.28 in	Box Potting	56.9 cm˛	8.82 in˛	32.51 mm
Hammond Manufacturing 1596B106-5		Black	0.039 in	1 mm	100 mm	2.362 in	60 mm	3.937 in	Plastic	0.988 in	25.1 mm	Box Potting	60 cm²	9.3 in²

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 8.58
		5	$ 8.39

Description

General part information

1596 Series

Box, Potting Plastic Black 1.575" L x 1.378" W (40.00mm x 35.00mm) X 0.791" (20.10mm)
