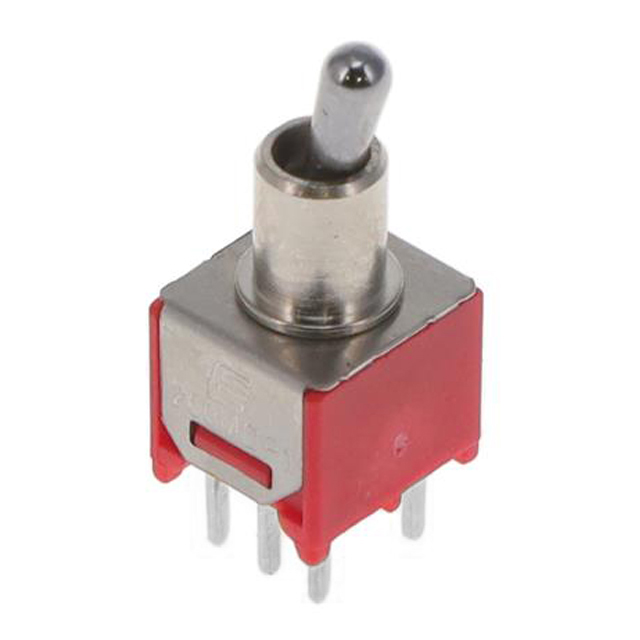

200MDP1T2B2M2QE

Active

E-Switch

SWITCH TOGGLE DPDT 3A 120V

Deep-Dive with AI

Search across all available documentation for this part.

200MDP1T2B2M2QE

Active

E-Switch

SWITCH TOGGLE DPDT 3A 120V

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	200MDP1T2B2M2QE

Actuator Length [x]	5.33 mm
Actuator Material	Brass, Chrome Plated
Actuator Type	Standard Round
Bushing Thread	Unthreaded
Circuit	DPDT
Current Rating (Amps)	3 A
Electrical Life	30000 Cycles
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Through Hole
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	On-On
Termination Style	PC Pin
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

200MDP1 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Material	Electrical Life	Current Rating (Amps)	Panel Cutout Dimensions [diameter]	Features	Voltage Rating - DC	Illumination	Bushing Thread	Voltage Rating - AC	Actuator Type	Actuator Length [x]	Switch Function	Circuit	Termination Style	Mounting Type
E-Switch 200MDP1T1B1M2REH	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	0.4 VA	4.95 mm	Epoxy Sealed Terminals	20 V	Non-Illuminated	10-48	20 V	Standard Round	9.4 mm	On-On	DPDT	PC Pin
E-Switch 200MDP1T3B2M7RE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	0.4 VA		Epoxy Sealed Terminals	20 V	Non-Illuminated	Unthreaded	20 V	Standard Round		On-On	DPDT	PC Pin	Right Angle Through Hole Vertical
E-Switch 200MDP1T5B4M6QE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	3 A		Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	120 V	Standard Round	7.88 mm	On-On	DPDT	PC Pin	Through Hole Right Angle
E-Switch 200MDP1T2B2M2QE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	3 A		Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	120 V	Standard Round	5.33 mm	On-On	DPDT	PC Pin	Through Hole
E-Switch 200MDP1T2B1M6RE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	0.4 VA	4.95 mm	Epoxy Sealed Terminals	20 V	Non-Illuminated	10-48	20 V	Standard Round	5.33 mm	On-On	DPDT	PC Pin	Panel Mount Right Angle
E-Switch 200MDP1T4B1M6RE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	0.4 VA	4.95 mm	Epoxy Sealed Terminals	20 V	Non-Illuminated	10-48	20 V	Standard Round	0.5 in	On-On	DPDT	PC Pin	Panel Mount Right Angle
E-Switch 200MDP1T3B4M7QE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	3 A		Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	120 V	Standard Round		On-On	DPDT	PC Pin	Right Angle Through Hole Vertical
E-Switch 200MDP1T2B4M2QE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	3 A		Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	120 V	Standard Round	5.33 mm	On-On	DPDT	PC Pin	Through Hole
E-Switch 200MDP1T1B4M7QE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	3 A		Epoxy Sealed Terminals	28 V	Non-Illuminated	Unthreaded	120 V	Standard Round	9.4 mm	On-On	DPDT	PC Pin	Right Angle Through Hole Vertical
E-Switch 200MDP1T4B6M2RE	-30 ░C	85 °C	Brass Chrome Plated	30000 Cycles	0.4 VA		Epoxy Sealed Terminals	20 V	Non-Illuminated	Unthreaded	20 V	Standard Round	10.41 mm	On-On	DPDT	PC Pin	Through Hole

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.86
		10	$ 3.45
		25	$ 3.27
		50	$ 3.15
		100	$ 2.99
		270	$ 2.85
		540	$ 2.62
		1080	$ 2.51

Description

General part information

200MDP1 Series

Toggle Switch DPDT Through Hole

Documents

Technical documentation and resources

No documents available
