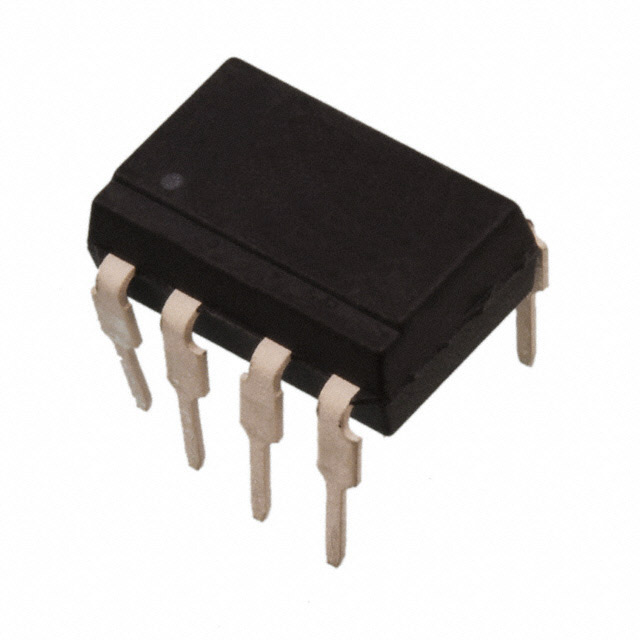

TLP621-2X

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV 2CH TRANS 8DIP

Search across all available documentation for this part.

Active

Isocom Components 2004 LTD

OPTOISO 5.3KV 2CH TRANS 8DIP

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5300Vrms 2 Channel

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	TLP621-2X	TLP621 Series

Current - DC Forward (If) (Max)	50 mA	50 mA
Current Transfer Ratio (Max) [Max]	600 %	600 %
Current Transfer Ratio (Min) [Min]	50 %	50 - 100 %
Input Type	DC	DC
Mounting Type	Through Hole	Through Hole, Surface Mount
Number of Channels	-	1 - 4
Number of Channels [custom]	2	2
Operating Temperature [Max]	100 °C	100 °C
Operating Temperature [Min]	-55 °C	-55 °C
Output Type	1.81 mOhm	1.81 mOhm
Package / Case	0.3 in	0.3 - 10.16 mm
Package / Case	8-DIP	4-DIP, 4-DIP (0.300", 7.62mm), 8-DIP, 16-DIP, 4-SMD, Gull Wing
Package / Case	7.62 mm	7.62 mm
Package / Case	-	10.16 mm
Rise / Fall Time (Typ) [custom]	3 µs	3 µs
Rise / Fall Time (Typ) [custom]	2 µs	2 µs
Supplier Device Package	-	4-DIP, 8-DIP
Turn On / Turn Off Time (Typ)	3 µs	3 µs
Vce Saturation (Max) [Max]	400 mV	400 mV
Voltage - Forward (Vf) (Typ)	1.15 V	1.15 V
Voltage - Isolation	5300 Vrms	5300 Vrms
Voltage - Output (Max) [Max]	55 V	55 V

OPTOISO 5.3KV 1CH TRANS 4DIP

Part	Mounting Type	Current Transfer Ratio (Min) [Min]	Output Type	Number of Channels	Turn On / Turn Off Time (Typ)	Current - DC Forward (If) (Max)	Vce Saturation (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Current Transfer Ratio (Max) [Max]	Voltage - Output (Max) [Max]	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Input Type	Package / Case	Supplier Device Package	Voltage - Isolation	Package / Case	Package / Case	Number of Channels [custom]	Package / Case
Isocom Components 2004 LTD TLP621XGB	Through Hole	100 %	1.81 mOhm	1	3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	4-DIP	4-DIP	5300 Vrms
Isocom Components 2004 LTD TLP621X	Through Hole	50 %	1.81 mOhm	1	3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	4-DIP (0.300", 7.62mm)		5300 Vrms
Isocom Components 2004 LTD TLP621-2XGB	Through Hole	100 %	1.81 mOhm		3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	8-DIP	8-DIP	5300 Vrms	10.16 mm	10.16 mm	2
Isocom Components 2004 LTD TLP621-4X	Through Hole	50 %	1.81 mOhm	4	3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	16-DIP		5300 Vrms		0.3 in		7.62 mm
Isocom Components 2004 LTD TLP621XSM	Surface Mount	50 %	1.81 mOhm	1	3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	4-SMD, Gull Wing		5300 Vrms
Isocom Components 2004 LTD TLP621-2X	Through Hole	50 %	1.81 mOhm		3 µs	50 mA	400 mV	100 °C	-55 °C	1.15 V	600 %	55 V	3 µs	2 µs	DC	8-DIP		5300 Vrms		0.3 in	2	7.62 mm
