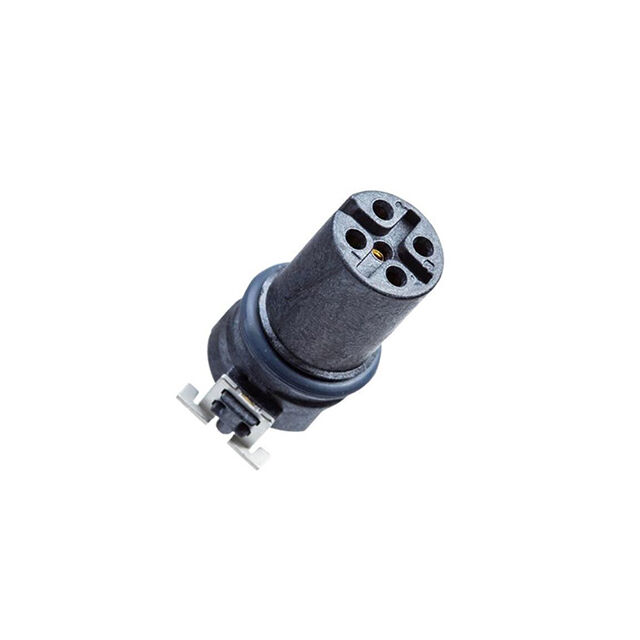

M12X-08PFFT-EE0003

Active

Amphenol LTW

M SERIES, M12, 0.5A, 08 PINS, SMT ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES, M12, 0.5A, 08 PINS, SMT ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Color	Number of Positions	Connector Type	Orientation	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Insert Material	Features	Mounting Type	Primary Material	Contact Finish - Mating	Shell Size - Insert	Termination	Shielding	Current Rating (Amps)
Amphenol LTW M12X-08PFFT-EE0003	50 VAC 60 VDC	Black	8	Receptacle Female Sockets	X	Push-Pull	-55 °C	125 °C	Copper Alloy	Thermoplastic	Board Guide Ground	Surface Mount	Plastic	Gold	M12-8	Solder	Unshielded	0.5 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Receptacle, Female Sockets Solder
