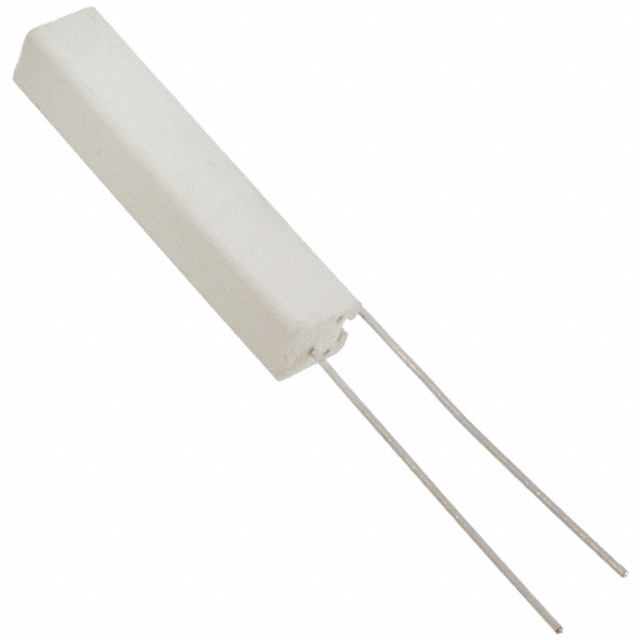

SBCH61R0J
ActiveTE Connectivity Passive Product
RES 1 OHM 5% 7W AXIAL
Deep-Dive with AI
Search across all available documentation for this part.
Documents1623726
SBCH61R0J
ActiveTE Connectivity Passive Product
RES 1 OHM 5% 7W AXIAL
Deep-Dive with AI
Documents1623726
Technical Specifications
Parameters and characteristics for this part
| Specification | SBCH61R0J |
|---|---|
| Composition | Wirewound |
| Features | Flame Proof, Safety |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 350 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 7 W |
| Resistance | 1 Ohms |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.276 in |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.496 in |
| Temperature Coefficient | 400 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.34 | |
| 10 | $ 1.55 | |||
| 25 | $ 1.34 | |||
| 50 | $ 1.21 | |||
| 100 | $ 1.10 | |||
| 250 | $ 0.97 | |||
| 500 | $ 0.89 | |||
| 1000 | $ 0.83 | |||
| 5000 | $ 0.71 | |||
Description
General part information
SBCH6 Series
1 Ohms ±5% 7W Through Hole Resistor Axial Flame Proof, Safety Wirewound
