AT04-18PC-BM13

Active

Amphenol Sine Systems Corp

18 POSITION, PCB RECEPTACLE, FLA

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

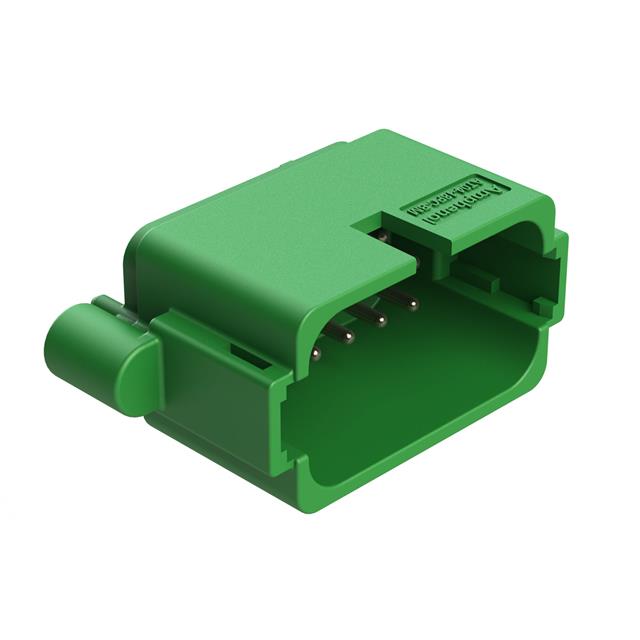

AT04-18PC-BM13

Active

Amphenol Sine Systems Corp

18 POSITION, PCB RECEPTACLE, FLA

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-18PC-BM13

Applications	Industrial, General Purpose, Automotive
Connector Type	Receptacle
Contact Finish - Mating	Nickel
Contact Length - Post	0.128 "
Contact Length - Post	3.25 mm
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	13 A
Fastening Type	Latch Holder
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insulation Color	Green
Insulation Height	1.01 in
Insulation Height	25.65 mm
Insulation Material	Thermoplastic
Mounting Type	Through Hole
Number of Positions	18
Number of Positions Loaded	All
Number of Rows	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.184 in
Pitch - Mating	4.68 mm
Row Spacing - Mating	4.83 mm
Row Spacing - Mating	0.19 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	250 VDC

AT04-18PC Series

Part	Contact Length - Post	Contact Length - Post	Connector Type	Features	Contact Finish - Mating	Applications	Insulation Material	Voltage Rating	Contact Type	Number of Rows	Current Rating (Amps)	Termination	Contact Material	Shrouding	Contact Shape	Number of Positions Loaded	Style	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Insulation Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Ingress Protection	Insulation Height	Insulation Height	Fastening Type	Pitch - Mating	Pitch - Mating
Amphenol Sine Systems Corp AT04-18PC-BM14	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange Potting Wall	Nickel	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Green	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM13	0.128 "	3.25 mm	Receptacle	Board Guide	Nickel	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Green	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM14BK	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange Potting Wall	Nickel	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Black	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM11BK	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange	Gold	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Black	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM11	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange	Gold	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Green	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM12BK	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange Potting Wall	Gold	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Black	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM13BK	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange	Nickel	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Black	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm
Amphenol Sine Systems Corp AT04-18PC-BM12	0.128 "	3.25 mm	Receptacle	Board Guide Mounting Flange Potting Wall	Gold	Automotive General Purpose Industrial	Thermoplastic	250 VDC	Male Pin	3	13 A	Solder	Copper Alloy	Shrouded - 4 Wall	Circular	All	Board to Cable/Wire	Through Hole	4.83 mm	0.19 in	Green	-55 °C	125 °C	18	IP67 - Dust Tight Waterproof	1.01 in	25.65 mm	Latch Holder	0.184 in	4.68 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.36
		10	$ 8.43
		25	$ 7.94
		40	$ 7.73
		200	$ 7.53
		400	$ 6.72
		600	$ 6.31
		1000	$ 5.58

Description

General part information

AT04-18PC Series

Connector Header Through Hole 18 position 0.184" (4.68mm)
