R112053000

Active

Radiall USA, Inc.

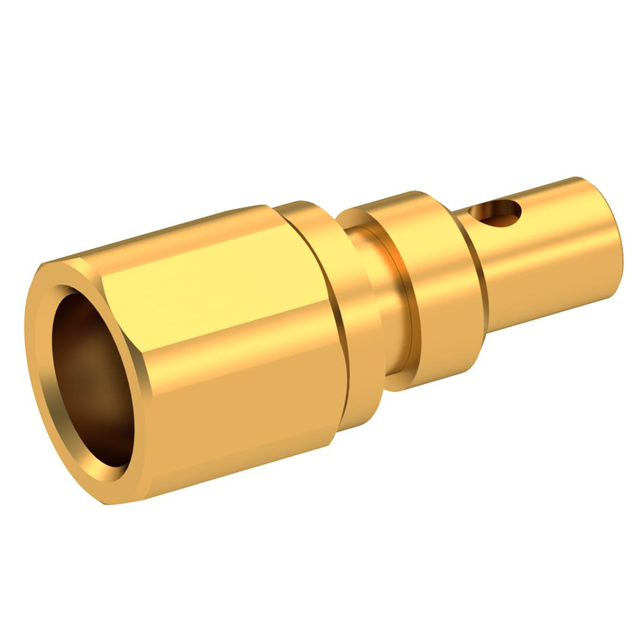

RF SMC CONNECTOR, FEMALE, CABLE MOUNT, SOLDER TERMINAL, PLUG

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF SMC CONNECTOR, FEMALE, CABLE MOUNT, SOLDER TERMINAL, PLUG

Technical Specifications

Parameters and characteristics for this part

Specification	R112053000

Body Finish	Gold
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	10 GHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Center Contact Plating	Mounting Type	Shield Termination	Impedance	Center Contact Material	Mating Cycles	Cable Group	Number of Ports	Body Finish	Housing Color	Dielectric Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Frequency - Max [Max]	Connector Type	Connector Style	Voltage Rating	Body Material
Radiall USA, Inc. R112053000	Gold	Free Hanging (In-Line)	Solder	50 Ohms	Beryllium Copper	500	RG-405 (.085" Semi Rigid)	1	Gold	Gold	Polytetrafluoroethylene (PTFE)	-65 ░C	105 ░C	Solder	10 GHz	Female Socket Plug	SMC	250 VDC	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 21.82

General part information

SMC Connector Plug, Female Socket 50 Ohms Free Hanging (In-Line) Solder
