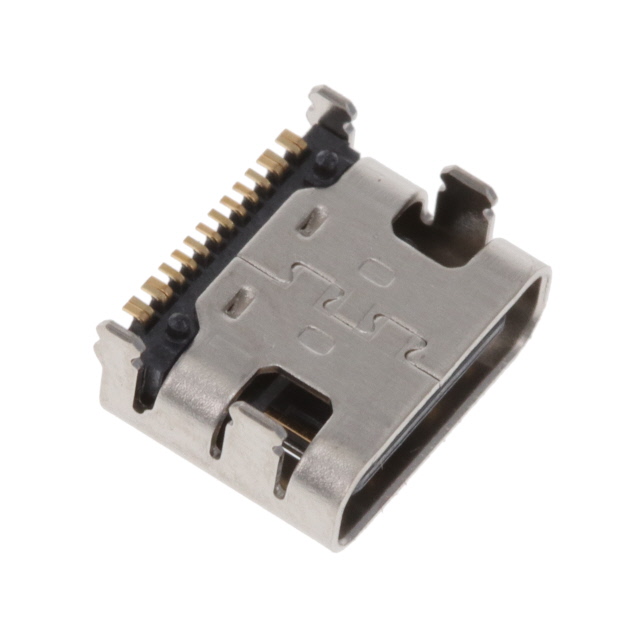

DX07S016JA1R1500
ActiveJAE Electronics
CONN RCP USB2.0 TYP C 24P SMD RA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DX07S016JA1R1500
ActiveJAE Electronics
CONN RCP USB2.0 TYP C 24P SMD RA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DX07S016JA1R1500 |
|---|---|
| Connector Type | USB-C (USB TYPE-C) |
| Contact Finish | Gold |
| Current Rating (Amps) | 0.25 A, 1.25 A |
| Gender | Receptacle |
| Insulation Color | Black |
| Mating Cycles | 10000 |
| Mounting Feature | Horizontal |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 24 |
| Number of Ports | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Solder |
| Voltage - Rated | 48 V |
DX07S016 Series
| Part | Gender | Mounting Feature | Current Rating (Amps) | Mounting Type | Voltage - Rated | Specifications | Contact Finish | Connector Type | Mating Cycles | Insulation Color | Operating Temperature [Max] | Operating Temperature [Min] | Shielding | Number of Ports | Shell/Shielding Material | Number of Contacts | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JAE Electronics | Receptacle | Horizontal | 0.25 A 1.25 A | Surface Mount Right Angle Through Hole | 48 V | USB 2.0 | Gold | USB-C (USB TYPE-C) | 10000 | Black | 85 °C | -40 °C | Shielded | 1 | Stainless Steel | 24 | Solder |
JAE Electronics | Receptacle | Horizontal | 0.25 A 1.25 A 5 A 6.25 A | Surface Mount Right Angle Through Hole | 48 V | USB 2.0 | Gold | USB-C (USB TYPE-C) | 10000 | Black | 85 °C | -40 °C | Shielded | 1 | Stainless Steel | 24 | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.21 | |
| 10 | $ 1.69 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.18 | |||
| 500 | $ 1.09 | |||
| Digi-Reel® | 1 | $ 2.21 | ||
| 10 | $ 1.69 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.40 | |||
| 100 | $ 1.30 | |||
| 250 | $ 1.18 | |||
| 500 | $ 1.09 | |||
| Tape & Reel (TR) | 1500 | $ 0.98 | ||
| 3000 | $ 0.91 | |||
| 4500 | $ 0.88 | |||
| 7500 | $ 0.84 | |||
| 10500 | $ 0.83 | |||
Description
General part information
DX07S016 Series
USB-C (USB TYPE-C) USB 2.0 Receptacle Connector 24 (16+8 Dummy) Position Surface Mount, Right Angle; Through Hole
