W956D6KBKX7I
ActiveWinbond Electronics

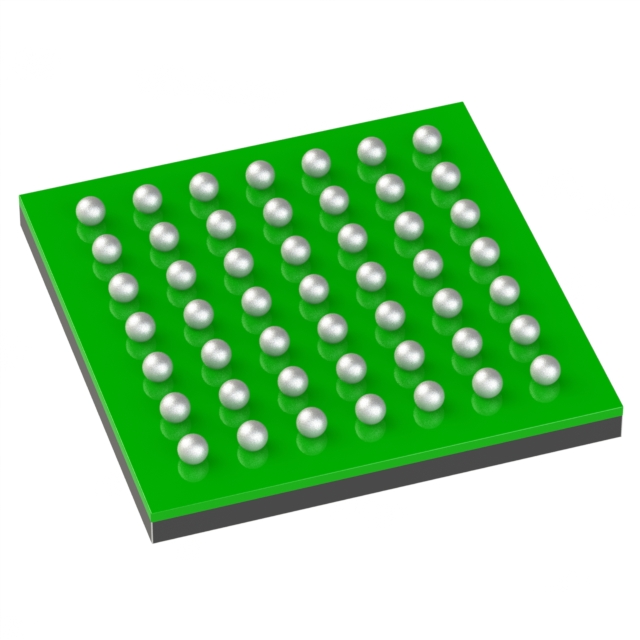

IC PSRAM 64MBIT PAR 49WFBGA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W956D6KBKX7I
ActiveWinbond Electronics
IC PSRAM 64MBIT PAR 49WFBGA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | W956D6KBKX7I | W956D6 Series |
|---|---|---|
| Access Time | 70 ns | 70 ns |
| Clock Frequency | 133 MHz | 133 MHz |
| Memory Format | PSRAM | PSRAM |
| Memory Interface | Parallel | Parallel |
| Memory Organization | 4M x 16 | 4M x 16 |
| Memory Size | 64 Gbit | 64 Gbit |
| Memory Type | Volatile | Volatile |
| Mounting Type | Surface Mount | Surface Mount |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Package / Case | 49-WFBGA | 49-WFBGA, 54-VFBGA |
| Supplier Device Package | 49-WFBGA (4x4) | 49-WFBGA (4x4), 54-VFBGA (6x8) |
| Technology | PSRAM (Pseudo SRAM) | PSRAM (Pseudo SRAM) |
| Voltage - Supply [Max] | 1.95 V | 1.95 V |
| Voltage - Supply [Min] | 1.7 V | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 2.10 | |
| 10 | $ 1.96 | |||
| 25 | $ 1.90 | |||
| 40 | $ 1.88 | |||
| 80 | $ 1.83 | |||
| 312 | $ 1.75 | |||
| 624 | $ 1.71 | |||
| 1248 | $ 1.66 | |||
| 4992 | $ 1.58 | |||
W956D6 Series
IC PSRAM 64MBIT PAR 49WFBGA
| Part | Technology | Mounting Type | Memory Organization | Memory Interface | Memory Size | Voltage - Supply [Max] | Voltage - Supply [Min] | Memory Type | Memory Format | Access Time | Package / Case | Clock Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Winbond Electronics W956D6KBKX7I | PSRAM (Pseudo SRAM) | Surface Mount | 4M x 16 | Parallel | 64 Gbit | 1.95 V | 1.7 V | Volatile | PSRAM | 70 ns | 49-WFBGA | 133 MHz | -40 °C | 85 °C | 49-WFBGA (4x4) |
Winbond Electronics W956D6HBCX7I TR | PSRAM (Pseudo SRAM) | Surface Mount | 4M x 16 | Parallel | 64 Gbit | 1.95 V | 1.7 V | Volatile | PSRAM | 70 ns | 54-VFBGA | 133 MHz | -40 °C | 85 °C | 54-VFBGA (6x8) |
Description
General part information
W956D6 Series
PSRAM (Pseudo SRAM) Memory IC 64Mbit Parallel 133 MHz 70 ns 49-WFBGA (4x4)
