622-M37-260-LT4

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

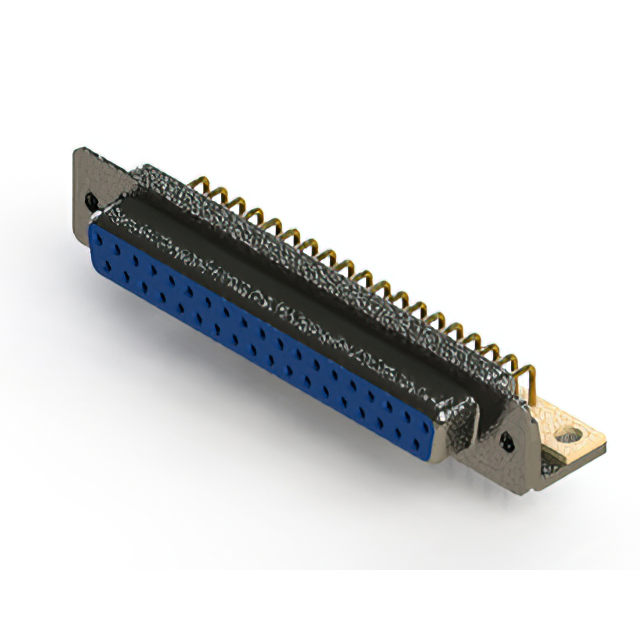

622-M37-260-LT4

Active

EDAC Inc.

622M SERIES RIGHT ANGLE D-SUB PL

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	622-M37-260-LT4

Backset Spacing	0.283 in
Backset Spacing	7.2 mm
Color	Blue
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyamide (PA6T), Nylon 6T
Features	Shielded, Mounting Brackets
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Board Edge
Number of Positions	37
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	4 (DC, C)
Termination	Solder

622-M37 Series

...

Part	Number of Rows	Dielectric Material	Termination	Color	Shell Size, Connector Layout	Connector Type	Features	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Shell Material, Finish	Material Flammability Rating	Flange Feature	Contact Finish	Contact Type	Connector Style	Contact Material	Backset Spacing	Backset Spacing	Number of Positions	Contact Finish Thickness
EDAC Inc. 622-M37-660-GN4	2	Polyamide (PA6T) Nylon 6T	Solder	Green	4 (DC C)	Receptacle Female Sockets	Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.76 Ám	30 Áin	Nickel Plated Steel	UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-360-GT5	2	Polyamide (PA6T) Nylon 6T	Solder	Green	4 (DC C)	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.38 µm	15 µin		UL94 V-0	4-40	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-660-WT2	2	Polyamide (PA6T) Nylon 6T	Solder	White	4 (DC C)	Receptacle Female Sockets	Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.76 Ám	30 Áin		UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-660-GT2	2	Polyamide (PA6T) Nylon 6T	Solder	Green	4 (DC C)	Receptacle Female Sockets	Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.76 Ám	30 Áin		UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-660-LT4	2	Polyamide (PA6T) Nylon 6T	Solder	Blue	4 (DC C)	Receptacle Female Sockets	Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.76 Ám	30 Áin		UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-360-WT3	2	Polyamide (PA6T) Nylon 6T	Solder	White	4 (DC C)	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.38 µm	15 µin		UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-660-BT6	2	Polyamide (PA6T) Nylon 6T	Solder	Black	4 (DC C)	Receptacle Female Sockets	Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.76 Ám	30 Áin		UL94 V-0	4-40	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-360-LT1	2	Polyamide (PA6T) Nylon 6T	Solder	Blue	4 (DC C)	Receptacle Female Sockets	Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.38 µm	15 µin		UL94 V-0	Housing/Shell (Unthreaded)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-360-LT3	2	Polyamide (PA6T) Nylon 6T	Solder	Blue	4 (DC C)	Receptacle Female Sockets	Board Lock Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A	0.38 µm	15 µin		UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37
EDAC Inc. 622-M37-260-LT4	2	Polyamide (PA6T) Nylon 6T	Solder	Blue	4 (DC C)	Receptacle Female Sockets	Mounting Brackets Shielded	Board Edge Right Angle Through Hole	-55 °C	125 °C	5 A				UL94 V-0	Housing/Shell (4-40)	Gold	Signal	D-Sub	Copper Alloy	0.283 in	7.2 mm	37	Flash

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	100	$ 9.38

Description

General part information

622-M37 Series

37 Position D-Sub Receptacle, Female Sockets Connector
