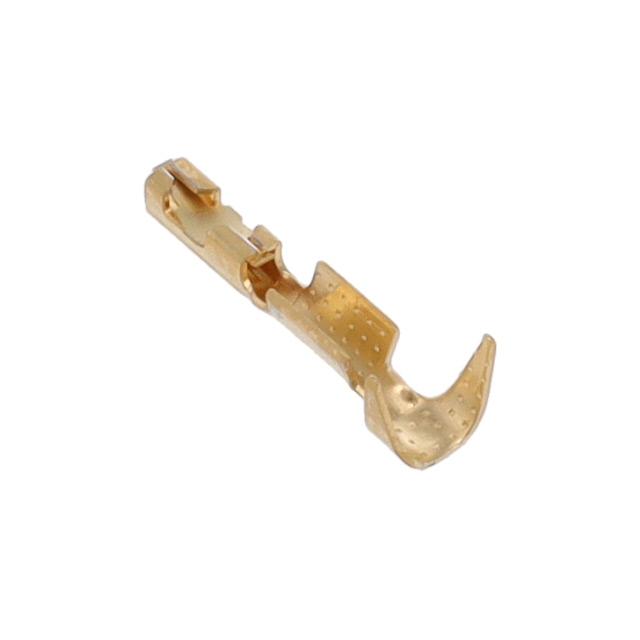

47457-002LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Search across all available documentation for this part.
47457-002LF
ActiveAmphenol ICC (FCI)
CONN SOCKET 22-26AWG CRIMP GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 47457-002LF |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 1.02 Ám |
| Contact Finish Thickness | 40 Áin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 22 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.37 | |
| 10 | $ 0.28 | |||
| 25 | $ 0.25 | |||
| 50 | $ 0.23 | |||
| 100 | $ 0.21 | |||
| 250 | $ 0.19 | |||
| 500 | $ 0.18 | |||
| 1000 | $ 0.17 | |||
| 2500 | $ 0.15 | |||
| Tape & Reel (TR) | 10000 | $ 0.13 | ||
| 20000 | $ 0.12 | |||
| 30000 | $ 0.12 | |||
| 50000 | $ 0.11 | |||
| 70000 | $ 0.11 | |||
Description
General part information
47457 Series
Socket Contact Gold 22-26 AWG Crimp
