Description

General part information

PBC19 Series

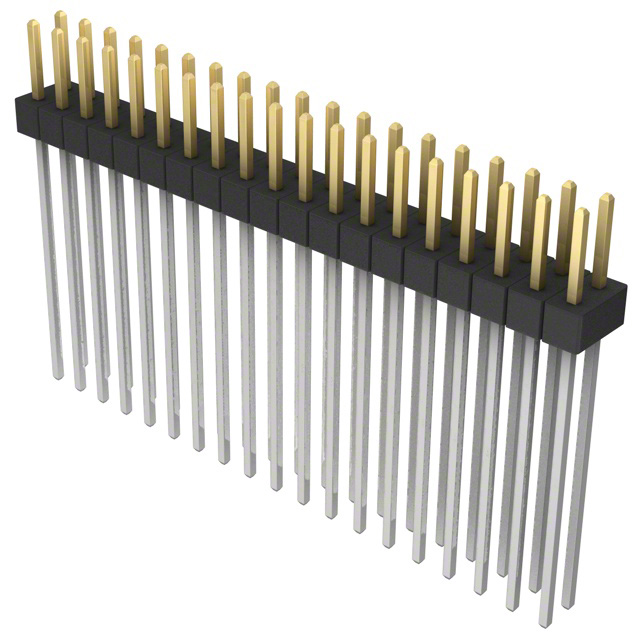

Connector Header Through Hole 38 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	PBC19DAHN

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 µin
Contact Finish Thickness - Post	100 Ąin
Contact Length - Mating	0.23 in
Contact Length - Post	0.82 in
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	38
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-65 °C
Overall Contact Length	1.15 in
Pitch - Mating	0.1 in
Row Spacing - Mating	0.1 in
Shrouding	Unshrouded
Style	Board, Board or Cable
Termination	Solder

PBC19 Series

Part	Insulation Color	Operating Temperature (Max)	Operating Temperature (Min)	Termination	Mounting Type	Insulation Material	Contact Type	Connector Type	Insulation Height	Contact Length - Post	Contact Finish - Post	Contact Finish - Mating	Number of Rows	Current Rating	Overall Contact Length	Pitch - Mating	Contact Finish Thickness - Mating	Style	Contact Shape	Material Flammability Rating	Contact Material	Contact Length - Mating	Number of Positions	Shrouding	Fastening Type	Number of Positions Loaded	Contact Finish Thickness - Post	Row Spacing - Mating
Sullins Connector Solutions PBC19SFBN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.22 in	Tin	Gold	1	3 A	0.638 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.318 in	19	Unshrouded	Push-Pull	All	100 Ąin
Sullins Connector Solutions PBC19DAHN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.82 in	Tin	Gold	2	3 A	1.15 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
Sullins Connector Solutions PBC19SAGN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.72 in	Tin	Gold	1	3 A	1.05 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	19	Unshrouded	Push-Pull	All	100 Ąin
Sullins Connector Solutions PBC19SFCN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.32 in	Tin	Gold	1	3 A	0.738 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.318 in	19	Unshrouded	Push-Pull	All	100 Ąin
Sullins Connector Solutions PBC19DABN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.23 in	Tin	Gold	2	3 A	0.56 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
Sullins Connector Solutions PBC19SAEN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.52 in	Tin	Gold	1	3 A	0.85 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	19	Unshrouded	Push-Pull	All	100 Ąin
Sullins Connector Solutions PBC19DAFN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.62 in	Tin	Gold	2	3 A	0.95 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
Sullins Connector Solutions PBC19DBAN	Black	125 °C	-65 °C	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.24 in	0.1 in	Tin	Gold	2	3 A		0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.23 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
Sullins Connector Solutions PBC19DGAN	Black	125 °C	-65 °C	Solder	Right Angle Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.24 in	0.1 in	Tin	Gold	2	3 A		0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.318 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
Sullins Connector Solutions PBC19DFCN	Black	125 °C	-65 °C	Solder	Through Hole	Polybutylene Terephthalate (PBT)	Male Pin	Breakaway Header	0.1 in	0.32 in	Tin	Gold	2	3 A	0.738 in	0.1 in	10 µin	Board Board or Cable	Square	UL94 V-0	Phosphor Bronze	0.318 in	38	Unshrouded	Push-Pull	All	100 Ąin	0.1 in
