TD190N16SOFHPSA2

Active

Infineon Technologies

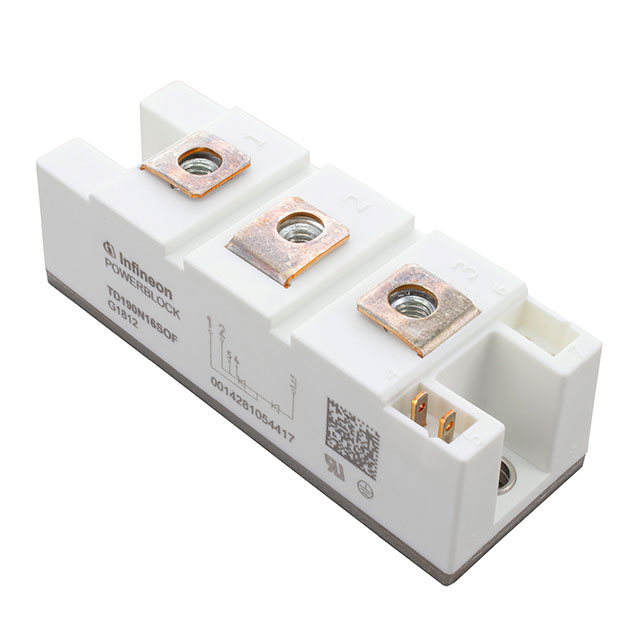

1600 V, 190 A ECO BLOCK 34 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TD190N16SOFHPSA2

Active

Infineon Technologies

1600 V, 190 A ECO BLOCK 34 MM THYRISTOR / DIODE PHASE CONTROL MODULES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TD190N16SOFHPSA2

Current - Gate Trigger (Igt) (Max) [Max]	145 mA
Current - Hold (Ih) (Max) [Max]	200 mA
Current - On State (It (RMS)) (Max)	275 A
Mounting Type	Chassis Mount
Number of SCRs, Diodes	1
Operating Temperature	125 ¯C
Package / Case	Module
Structure	Series Connection - SCR/Diode
Voltage - Gate Trigger (Vgt) (Max)	2.5 V
Voltage - Off State	1.6 kV

TD190N16 Series

Part	Current - Hold (Ih) (Max) [Max]	Mounting Type	Current - On State (It (RMS)) (Max)	Voltage - Off State	Current - Gate Trigger (Igt) (Max) [Max]	Structure	Number of SCRs, Diodes	Operating Temperature	Voltage - Gate Trigger (Vgt) (Max)	Package / Case
Infineon Technologies TD190N16SOFHPSA2	200 mA	Chassis Mount	275 A	1.6 kV	145 mA	Series Connection - SCR/Diode	1	125 ¯C	2.5 V	Module

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 50.34
		16	$ 45.77
		32	$ 44.24
		80	$ 41.19
		232	$ 39.67
Newark	Each	1	$ 49.38
		5	$ 44.32
		16	$ 39.27

Description

General part information

TD190N16 Series

Thyristor/Diode 34 mm Eco Block 1600 V, 190 A module for phase control insolder bond technology. This is the second generation with increase current rating. If you need additional features or higher performance go topressure contact technology.
