PCIM Series

Part	Signal Contacts (Typical)	Power Contacts (Typical)	Contact Finish	Color	Number of Positions Loaded	Connector Style	Termination	Number of Rows	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Number of Positions	Connector Type	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Connector Usage
McGill Microwave Systems PCIM30W15F300A1	15	15	Gold	Blue	All	CompactPCI®	Solder	3	Through Hole	0	Flash	Flash	30	Female Sockets Receptacle
McGill Microwave Systems PCIM30W15M300A1/AA	15	15	Gold	Blue	All	CompactPCI®	Solder	3	Through Hole	0	Flash	Flash	30	Header Male Pins

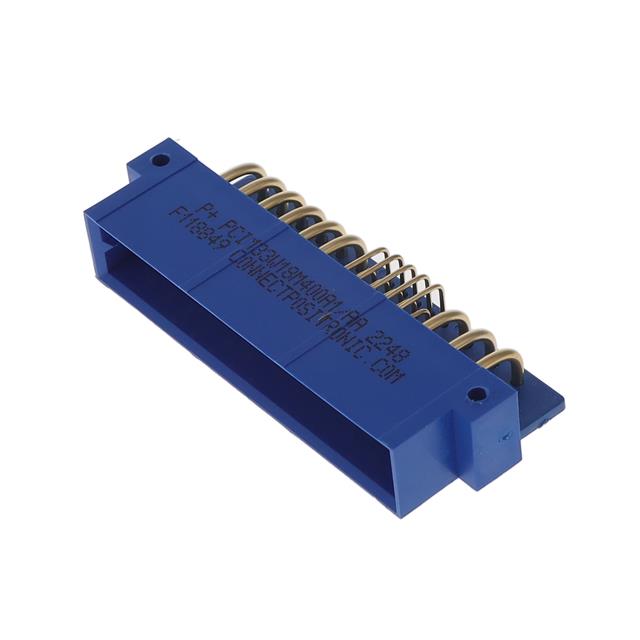

McGill Microwave Systems PCIM33W18M400A1/AA	15	18	Gold	Blue	All	CompactPCI®	Solder		Right Angle Through Hole	0	Flash	Flash	33	Header Male Pins	125 °C	-55 °C	UL94 V-0
McGill Microwave Systems PCIM37W16M400A1	21	16	Gold	Blue	All	CompactPCI®	Solder	3	Right Angle Through Hole	0	Flash	Flash	37 pos	Header Male Pins
McGill Microwave Systems PCIM30W15F9300A1/AA	15	15	Gold	Blue	All	CompactPCI®	Press-Fit	3	Through Hole	0	Flash	Flash	30	Female Sockets Receptacle
McGill Microwave Systems PCIM30W15F9300C1/AA	15	15	Gold	Blue	All	CompactPCI®	Press-Fit	3	Through Hole	30 µin			30	Female Sockets Receptacle
McGill Microwave Systems PCIM30W15RM400A1			Gold	Blue	All		Solder	3	Right Angle Through Hole				30	Header Male Pins
McGill Microwave Systems PCIM37W16F8000				Blue		Backplane		3	Free Hanging (In-Line)				37 pos	Housing for Female Sockets				Receptacle
McGill Microwave Systems PCIM30W15M300A1	15	15	Gold	Blue	All	CompactPCI®	Solder	3	Through Hole	0	Flash	Flash	30	Header Male Pins
