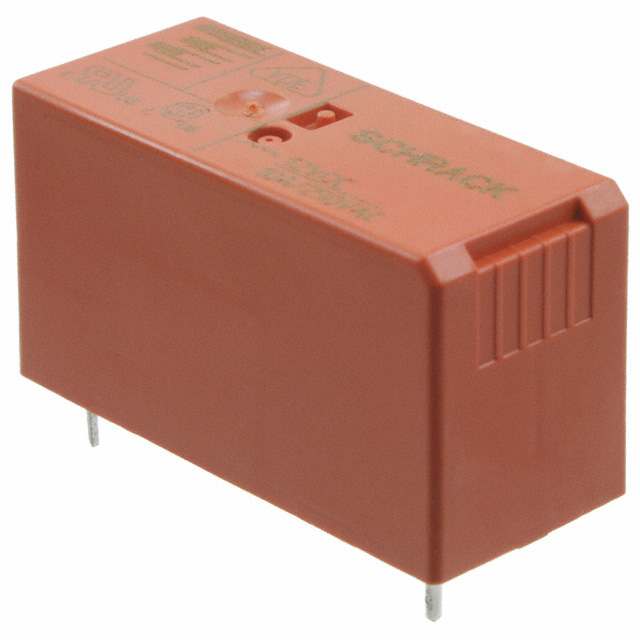

RT184012
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RT184012
ActiveTE Connectivity Potter & Brumfield Relays
RELAY GEN PURPOSE SPST 10A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RT184012 |
|---|---|
| Approval Agency | cURus, CQC, VDE, CSA |
| Coil Current | 14.2 mA |
| Coil Insulation | Class F |
| Coil Resistance | 576 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Nickel (AgNi) |
| Contact Rating (Current) | 10 A |
| Load - Max Switching | 4000 VA |
| Mounting Type | Through Hole |
| Must Operate Voltage | 9 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 10 ms |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Relay Type | General Purpose |
| Release Time | 8 ms |
| Seal Rating | Sealed - Flux Protection |
| Switching Voltage [Max] | 400 VAC |
| Termination Style | PC Pin |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.22 | |
| 20 | $ 3.02 | |||
| 40 | $ 2.55 | |||
| 60 | $ 4.73 | |||
| 100 | $ 2.42 | |||
| 260 | $ 2.36 | |||
| 500 | $ 4.25 | |||
| 1000 | $ 4.10 | |||
Description
General part information
RT1840 Series
General Purpose Relay SPST-NO (1 Form A) 12VDC Coil Through Hole
