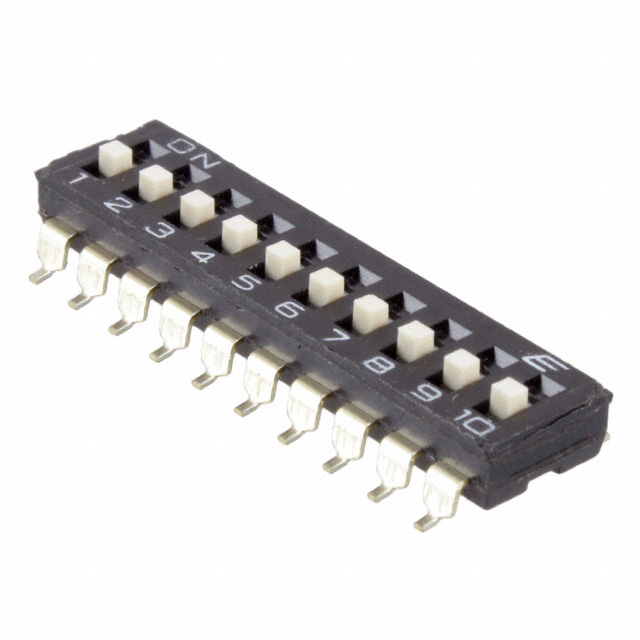

KAE10LGGT

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Search across all available documentation for this part.

Active

E-Switch

SWITCH SLIDE DIP SPST 0.025A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Pitch [x]	Pitch	Pitch [x]	Actuator Type	Number of Positions	Washable	Contact Finish	Actuator Level	Contact Material	Mounting Type	Voltage Rating	Mechanical Life	Termination Style	Electrical Life	Height Above Board	Height Above Board	Length [x]	Length [x]	Current Rating (Amps)	Circuit	Features
E-Switch KAE10LGGT	85 °C	-20 C	0.1 in	Full	2.54 mm	Slide (Standard)	10		Gold	Raised	Copper	Surface Mount	24 VDC	2000 Cycles	Gull Wing	2000 Steps	0.175 in	4.45 mm	1.041 in	26.44 mm	25 mA	SPST
E-Switch KAE10TGGT	85 °C	-20 C	0.1 in	Full	2.54 mm	Slide (Standard)	10		Gold	Flush Recessed	Copper	Surface Mount	24 VDC	2000 Cycles	Gull Wing	2000 Steps	0.148 in	3.75 mm	1.041 in	26.44 mm	25 mA	SPST	Tape Seal

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1008	$ 1.23

General part information

Dip Switch SPST 10 Position Surface Mount Slide (Standard) Actuator 25mA 24VDC

Technical documentation and resources

No documents available
