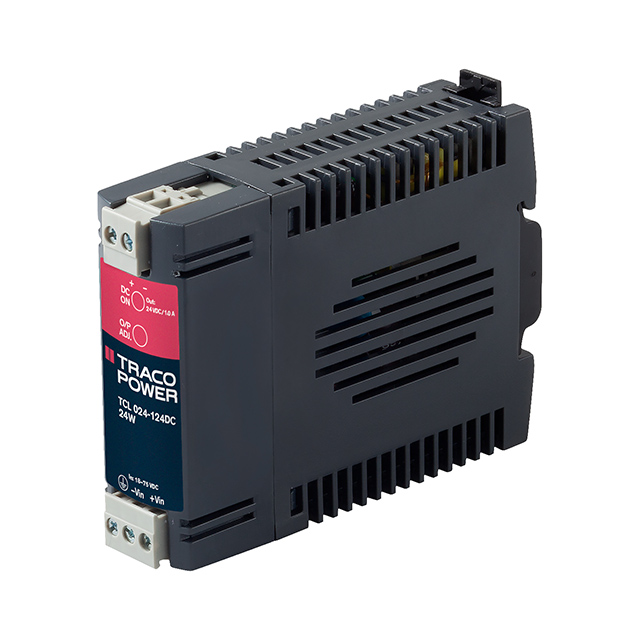

TCL 024-124

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 24W

Search across all available documentation for this part.

Active

Traco Power

AC/DC DIN RAIL SUPPLY 24V 24W

Technical Specifications

Parameters and characteristics commom to parts in this series

AC/DC DIN RAIL SUPPLY 24V 24W

Part	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Power (Watts)	Input Type	Efficiency	Features	Current - Output (Max) [Max]	Voltage - Isolation	Applications	Approval Agency	DC Voltage - Input (Max) [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Voltage - Output 1	DC Voltage - Input (Min) [Min]
Traco Power TCL 024-124	2.95 ", 74.9 mm	3.94 ", 100.1 mm	1.06 ", 26.9 mm	24 W	AC or DC	88 %	Adjustable Output, IP20	1 A	3000 V	Industrial, ITE (Commercial)	CB, cCSAus, CE, cULus, cURus	375 V	-10 °C	70 °C	1	85 VAC	264 VAC	24 V	85 V
Traco Power TCL 024-112 DC	2.95 ", 74.9 mm	3.94 ", 100.1 mm	1.06 ", 26.9 mm	24 W	DC	86 %	Adjustable Output, IP20	2 A	1.5 kV	Industrial, ITE (Commercial)	CB, cULus	75 V	-25 °C	70 °C	1			12 V	18 V
Traco Power TCL 024-124 DC	2.95 ", 74.9 mm	3.94 ", 100.1 mm	1.06 ", 26.9 mm	24 W	DC	86 %	Adjustable Output, IP20	1 A	1.5 kV	Industrial, ITE (Commercial)	CB, cULus	75 V	-25 °C	70 °C	1			24 V	18 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 24W
