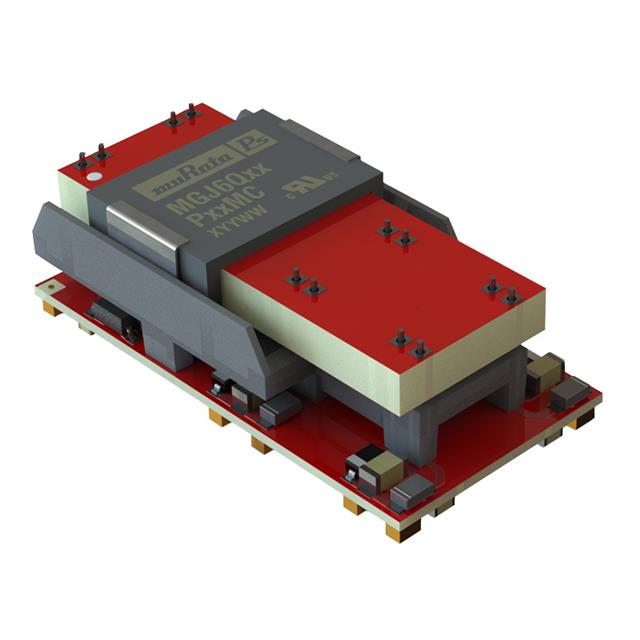

MGJ6Q05P24MC-R7

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, DIP, 2:1, 6 W, 4 OUTPUT, 24 V

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, DIP, 2:1, 6 W, 4 OUTPUT, 24 V

Technical Specifications

Parameters and characteristics for this part

ISOLATED SURFACE MOUNT DC/DC CONVERTER, GATE DRIVE, DIP, 2:1, 6 W, 4 OUTPUT, 24 V

Part	Number of Outputs	Features	Voltage - Isolation	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output 2	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Voltage - Output 1	Efficiency	Voltage - Input (Min) [Min]	Applications	Voltage - Output 4	Voltage - Output 3	Current - Output (Max)	Power (Watts)
Murata Power Solutions Inc. MGJ6Q05P24MC-R7	4	Remote On/Off	5.7 kV	Surface Mount	9 V	24 V	Isolated Module	22.6 mm	44.1 mm	0.56 "	14.1 mm	0.89 in	1.74 "	-40 °C	105 C	11-SMD Module	24 V	79.5 %	4.5 V	ITE (Commercial)	24 V	24 V	42 mA, 125 mA	6 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Isolated Module DC DC Converter 4 Output 24V 24V 24V 24V 42mA, 42mA, 42mA, 125mA 4.5V - 9V Input
