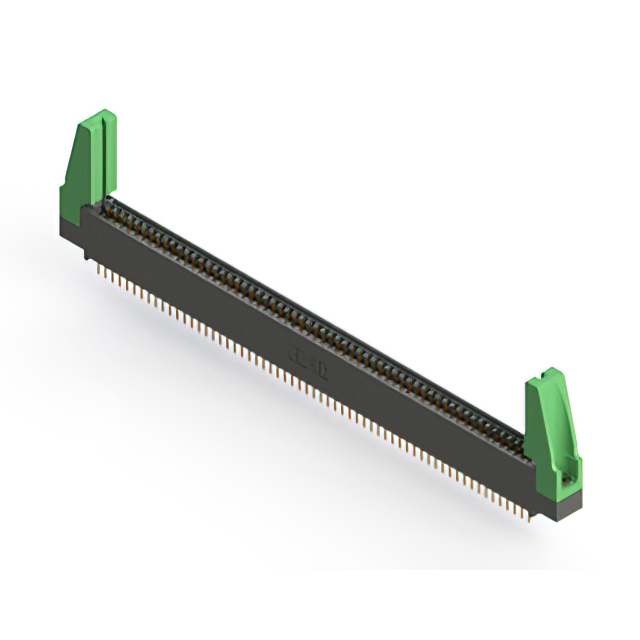

395-122-524-588
ActiveEDAC Inc.
CONN EDGE DUAL FML 122POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
395-122-524-588
ActiveEDAC Inc.
CONN EDGE DUAL FML 122POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 395-122-524-588 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Guides |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole |
| Number of Positions | 122 |
| Number of Positions/Bay/Row [custom] | 61 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
395-122 Series
...
| Part | Number of Rows | Termination Rows | Number of Positions | Mounting Type | Termination | Features | Color | Contact Material | Contact Finish | Pitch [x] | Pitch [x] | Read Out | Material - Insulation | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Gender | Number of Positions/Bay/Row [custom] | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 2 | 2 | 122 | Through Hole | Solder | Card Guides | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 2 | 122 | Board Edge Straddle Mount | Solder | Card Extender | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Side Mount Opening Unthreaded | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | 3.25 mm | 0.128 in | ||
EDAC Inc. | 2 | 2 | 122 | Through Hole | Solder | Card Guides | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 2 | 122 | Through Hole | Wire Wrap | Card Guides | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 2 | 122 | Through Hole | Wire Wrap | Card Guides | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 2 | 122 | Board Edge Straddle Mount | Solder Eyelet(s) | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 2 | 2 | 122 | Board Edge Straddle Mount | Solder Eyelet(s) | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 2 | 2 | 122 | Through Hole Right Angle | Solder | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Flush Mount M3 Threaded Insert Top Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | |||||
EDAC Inc. | 2 | 2 | 122 | Through Hole | Solder | Card Guides | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | ||||
EDAC Inc. | 2 | 2 | 122 | Through Hole Right Angle | Solder | Black | Copper Alloy | Gold | 2.54 mm | 0.1 in | Dual | Polyester Thermoplastic | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Floating Bobbin Top Mount Opening | -40 °C | 105 ░C | Non Specified - Dual Edge | Female | 61 | Cantilever | 10 Áin | 0.25 Ám | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 17.34 | |
Description
General part information
395-122 Series
122 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
