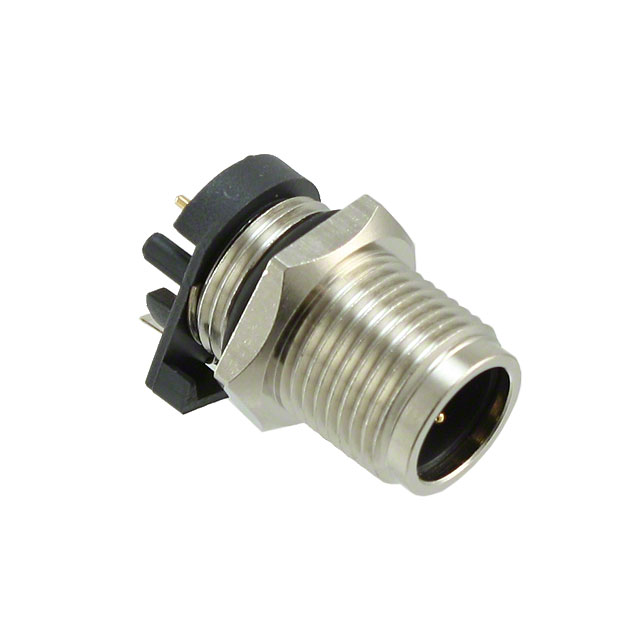

43-01185

Active

Amphenol CONEC

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

43-01185

Active

Amphenol CONEC

CONN RCPT MALE 5POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	43-01185

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Board Guide
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94
Mounting Feature	Bulkhead
Mounting Type	Through Hole, Panel Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M12-5
Shielding	Shielded
Termination	Solder
Voltage Rating	60 VDC

43-0118 Series

Part	Material Flammability Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Features	Termination	Color	Insert Material	Contact Finish - Mating	Shielding	Contact Material	Primary Material	Orientation	Ingress Protection	Shell Finish	Shell Material	Mounting Type	Shell Size - Insert	Mounting Feature	Current Rating (Amps)	Voltage Rating	Number of Positions
Amphenol CONEC 43-01185	UL94	Male Pins Receptacle	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA66) Nylon 6/6	Gold	Shielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-5	Bulkhead	4 A	60 VDC
Amphenol CONEC 43-01186	UL94 V-0	Female Sockets Plug	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA) Nylon Glass Filled	Gold	Unshielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-4	Bulkhead	4 A	250 VDC	4
Amphenol CONEC 43-01184	UL94	Male Pins Receptacle	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA66) Nylon 6/6	Gold	Unshielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-5	Bulkhead	4 A	60 VDC
Amphenol CONEC 43-01189	UL94 V-0	Female Sockets Plug	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA) Nylon Glass Filled	Gold	Shielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-5	Bulkhead	4 A	60 VDC
Amphenol CONEC 43-01180	UL94	Female Sockets Plug	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA66) Nylon 6/6	Gold	Unshielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-5	Bulkhead	4 A	60 VDC
Amphenol CONEC 43-01181	UL94	Female Sockets Plug	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA66) Nylon 6/6	Gold	Shielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-5	Bulkhead	4 A	60 VDC
Amphenol CONEC 43-01183	UL94	Male Pins Receptacle	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA66) Nylon 6/6	Gold	Shielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-4	Bulkhead	4 A	250 VDC	4
Amphenol CONEC 43-01187	UL94 V-0	Female Sockets Plug	-30 ░C	85 °C	Board Guide	Solder	Silver	Polyamide (PA) Nylon Glass Filled	Gold	Shielded	Copper Zinc	Metal	A	IP67 - Dust Tight Waterproof	Nickel	Copper Zinc	Panel Mount Through Hole	M12-4	Bulkhead	4 A	250 VDC	4

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 6.31

Description

General part information

43-0118 Series

5 Position Circular Connector Receptacle, Male Pins Solder

Documents

Technical documentation and resources
