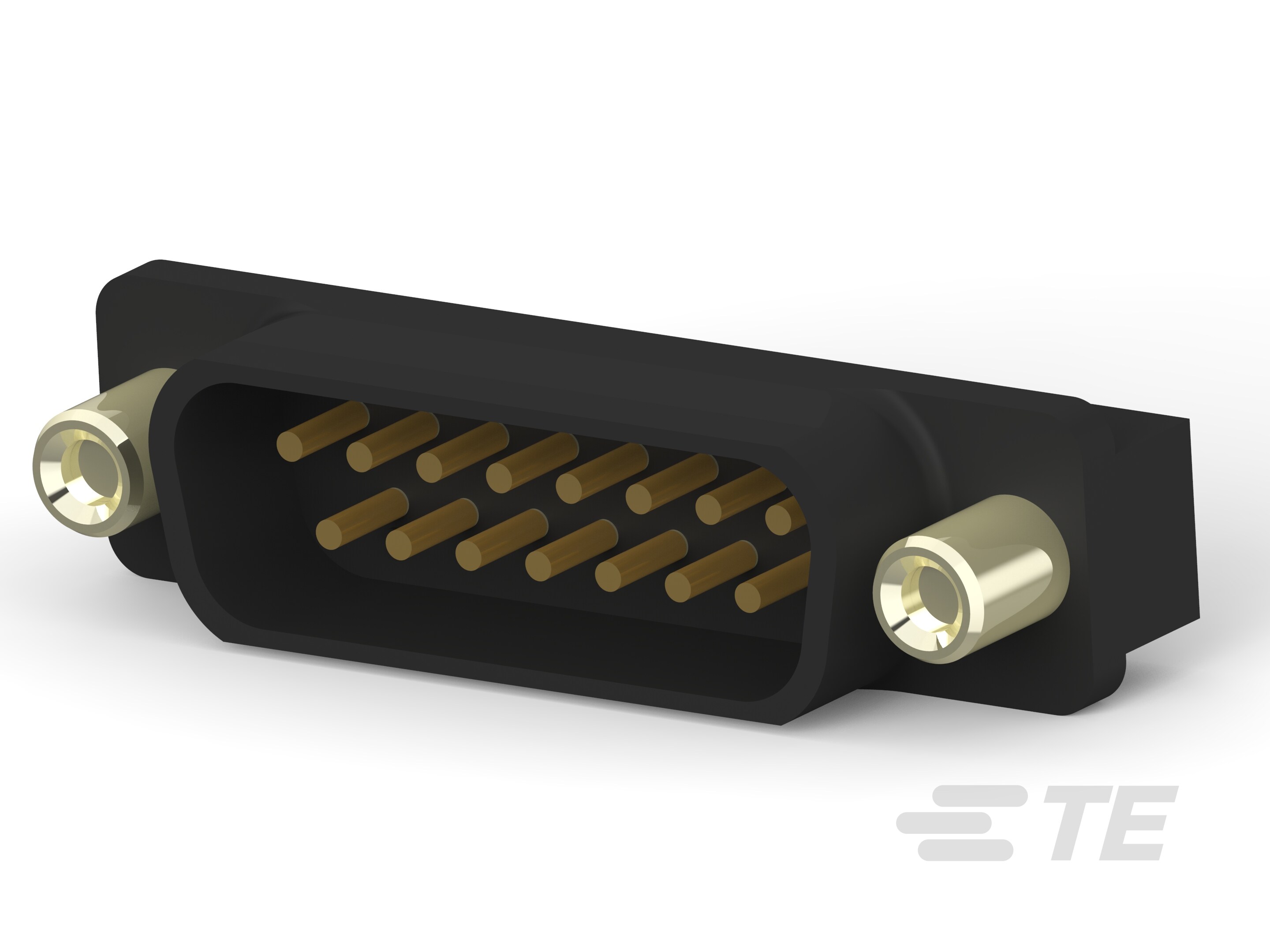

Specification	5745072-4

Color	Black
Connector Layout	A, DA
Connector Style	D-Sub
Connector Type	Male Pins, Plug
Contact Finish	Gold
Contact Finish Thickness	0
Contact Finish Thickness	Flash
Contact Finish Thickness (string set options)	Flash
Contact Material	Brass
Contact Type	Signal
Current Rating	6 A
Dielectric Material	Polyester
Flange Feature	Female Screwlock (4-40), Mating Side
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-55 °C
Shell Size	2
Termination	Solder
Voltage Rating	125 V

5745072 Series

Part	Contact Finish	Termination	Flange Feature	Material Flammability Rating	Connector Style	Contact Type	Number of Positions	Mounting Type	Contact Finish Thickness	Contact Finish Thickness (string set options)	Contact Finish Thickness	Current Rating	Connector Type	Shell Size	Connector Layout	Number of Rows	Color	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Contact Material	Voltage Rating
TE Connectivity AMP Connectors 5745072-4	Gold	Solder	Female Screwlock (4-40) Mating Side	UL94 V-0	D-Sub	Signal	15	Through Hole	0	Flash	Flash	6 A	Male Pins Plug	2	A DA	2	Black	Polyester	-55 °C	105 °C	Brass	125 V
