DS9092+

Active

Analog Devices Inc./Maxim Integrated

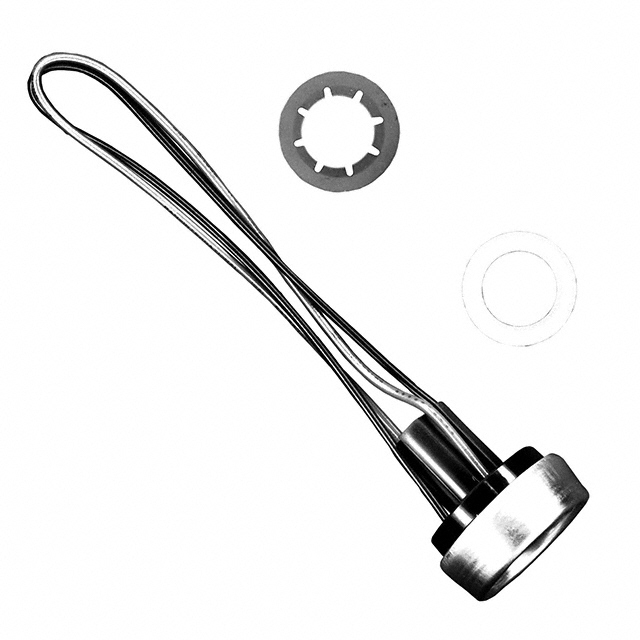

IBUTTON PROBE PANEL MOUNT

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

IBUTTON PROBE PANEL MOUNT

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DS9092+	DS9092 Series

	-	-
Accessory Type	Probe Driver, Probe Receiver	iButton Reader/Probe, Probe Driver, Probe Receiver
Card Type	-	iButton
Connector Type	-	Retainer, Probe Assembly
For Use With/Related Products	iButton®	iButton®
Height Above Board	-	10.1 mm
Height Above Board	-	0.398 in
Insertion, Removal Method	-	Pull Out, Push In
Number of Positions	-	2

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

CONN IBUTTON CARD PUSH-PULL

Part	Accessory Type	For Use With/Related Products	Number of Positions	Connector Type	Card Type	Insertion, Removal Method	Height Above Board [z]	Height Above Board [z]
Analog Devices Inc./Maxim Integrated DS9092GT#	iButton Reader/Probe	iButton®
Analog Devices Inc./Maxim Integrated DS9092-1+	iButton Reader/Probe	iButton®
Analog Devices Inc./Maxim Integrated DS9092L+	Probe Driver, Probe Receiver	iButton®
Analog Devices Inc./Maxim Integrated DS9092-2+			2	Probe Assembly, Retainer	iButton	Pull Out, Push In	10.1 mm	0.398 in
Analog Devices Inc./Maxim Integrated DS9092R+
Analog Devices Inc./Maxim Integrated DS9092RG+
Analog Devices Inc./Maxim Integrated DS9092T#	Probe Driver, Probe Receiver	iButton®
Analog Devices Inc./Maxim Integrated DS9092+	Probe Driver, Probe Receiver	iButton®
Analog Devices Inc./Maxim Integrated DS9092K#

General part information

Connector Probe Driver, Probe Receiver For iButton®

Technical documentation and resources
