145046050130868+

Active

Kyocera AVX

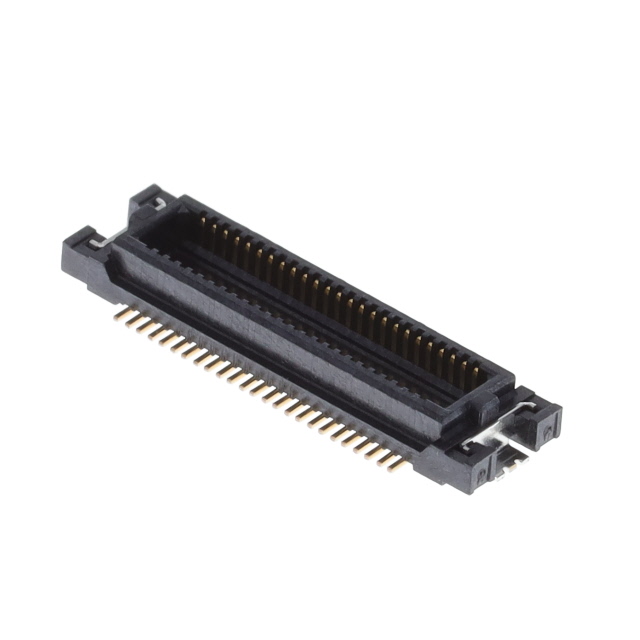

CONN PLUG 50POS SMD GOLD

Search across all available documentation for this part.

Active

Kyocera AVX

CONN PLUG 50POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

...

Part	Number of Rows	Contact Finish	Number of Positions	Features	Mounting Type	Mated Stacking Heights	Connector Type	Height Above Board [z]	Height Above Board [z]	Pitch [x]	Pitch [x]	Height Above Board	Height Above Board
Kyocera AVX 145046060535868+	2	Gold	60	Solder Retention	Surface Mount	3.5 mm	Outer Shroud Contacts Plug	0.11 "	2.8 mm	0.5 mm	0.02 in
Kyocera AVX 145046070630868+	2	Gold	70	Pick and Place Solder Retention	Surface Mount	3 mm	Outer Shroud Contacts Plug	0.091 in	2.3 mm	0.5 mm	0.02 in
Kyocera AVX 145046100030868+	2	Gold	100	Solder Retention	Surface Mount	3 mm	Outer Shroud Contacts Plug	0.091 in	2.3 mm	0.5 mm	0.02 in
Kyocera AVX 145046070535868+	2	Gold	70	Solder Retention	Surface Mount	3.5 mm	Outer Shroud Contacts Plug	0.11 "	2.8 mm	0.5 mm	0.02 in
Kyocera AVX 145046050130868+	2	Gold	50	Solder Retention	Surface Mount	3 mm	Outer Shroud Contacts Plug	0.091 in	2.3 mm	0.5 mm	0.02 in
Kyocera AVX 145046120630868+	2	Gold	120	Pick and Place Solder Retention	Surface Mount	3 mm	Outer Shroud Contacts Plug	0.091 in	2.3 mm	0.5 mm	0.02 in
Kyocera AVX 145046100535868+	2	Gold	100	Solder Retention	Surface Mount	3.5 mm	Outer Shroud Contacts Plug	0.11 "	2.8 mm	0.5 mm	0.02 in
Kyocera AVX 145046060045868+	2	Gold	60	Solder Retention	Surface Mount		Outer Shroud Contacts Plug			0.5 mm	0.02 in	3.8 mm	0.15 "
Kyocera AVX 145046100035868+	2	Gold	100	Solder Retention	Surface Mount	3.5 mm	Outer Shroud Contacts Plug	0.11 "	2.8 mm	0.5 mm	0.02 in
Kyocera AVX 145046030140868+	2	Gold	30	Solder Retention	Surface Mount	4 mm	Outer Shroud Contacts Plug			0.5 mm	0.02 in	3.3 mm	0.13 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	2000	$ 1.10

General part information

50 Position Connector Plug, Outer Shroud Contacts Surface Mount Gold
