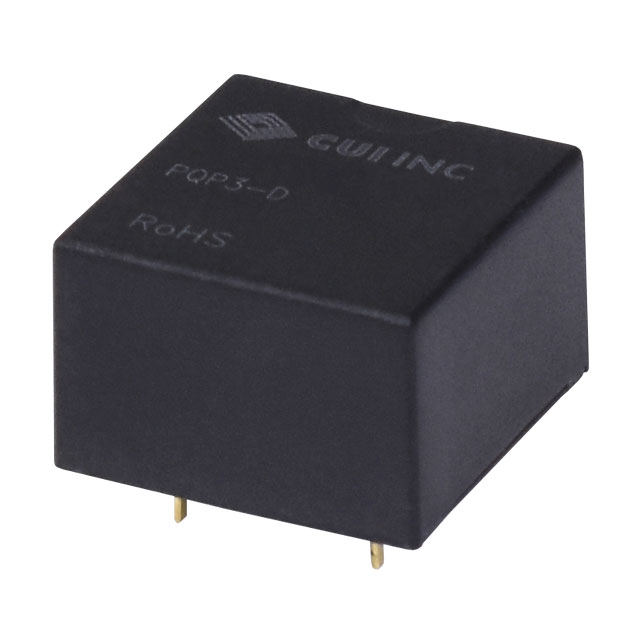

PQP3-D12-D9-D

CUI Inc.

DC DC CONVERTER +/-9V 3W

Search across all available documentation for this part.

CUI Inc.

DC DC CONVERTER +/-9V 3W

Technical Specifications

Parameters and characteristics for this part

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Isolation	Number of Outputs	Package / Case	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Type	Current - Output (Max)	Current - Output (Max)	Voltage - Output 2	Approval Agency	Efficiency	Voltage - Output 1	Applications	Voltage - Input (Min) [Min]	Power (Watts)	Mounting Type	Current - Output (Max) [Max]
CUI Inc. PQP3-D12-D9-D	14 mm	9 mm	0.55 in	0.35 "	0.55 in	14 mm	1.5 kV	2	5 Leads 8-DIP Module	18 V	85 °C	-40 °C	Isolated Module	167 mA	167 mA	-9 V	CE	78 %	9 V	ITE (Commercial)	9 V	3 W	Through Hole
CUI Inc. PQP3-D12-S5-M-TR	14 mm	9.1 mm	0.55 in	0.36 in	0.55 in	14 mm	1.5 kV	1	8-SMD Module 5 Leads	18 V	85 °C	-40 °C	Isolated Module				CE	79 %	5 V	ITE (Commercial)	9 V	3 W	Surface Mount	600 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	35	$ 8.35

General part information

Isolated Module DC DC Converter 2 Output 9V -9V 167mA, 167mA 9V - 18V Input
