Specification	AT06-08SB-SR2BK

Color	Black
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Features	Strain Relief, Cap (Cover), Sealed
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	8
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C

AT06-08SB Series

Part	Note	Connector Type	Contact Type	Fastening Type	Number of Rows	Color	Mounting Type	Features	Insulation Material	Contact Termination	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)
McGill Microwave Systems AT06-08SB-SRBK	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief	Thermoplastic	Crimp	8	125 °C	-55 °C

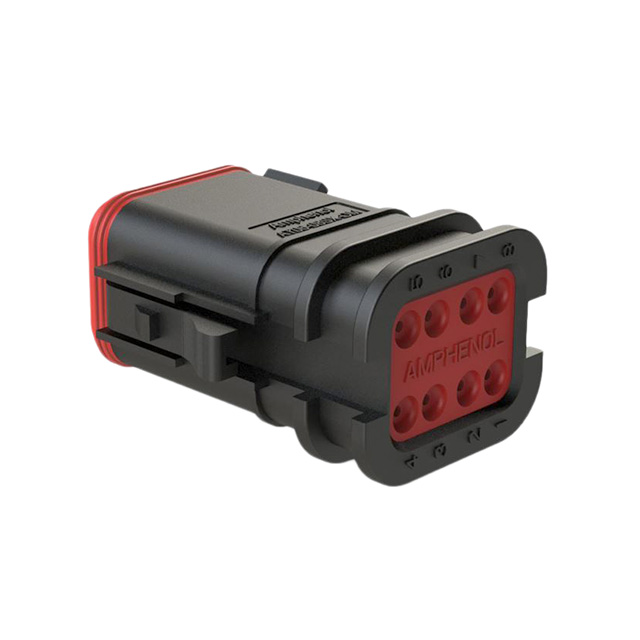

McGill Microwave Systems AT06-08SB-OMBLK	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	IP67	Glass Filled Nylon 6/6 Polyamide (PA66)	Crimp	8	125 °C	-55 °C
McGill Microwave Systems AT06-08SB-SS01	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	Cap (Cover) Sealed	Thermoplastic	Crimp	8	125 °C	-55 °C
McGill Microwave Systems AT06-08SB-SR2BK	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief	Thermoplastic	Crimp	8	125 °C	-55 °C

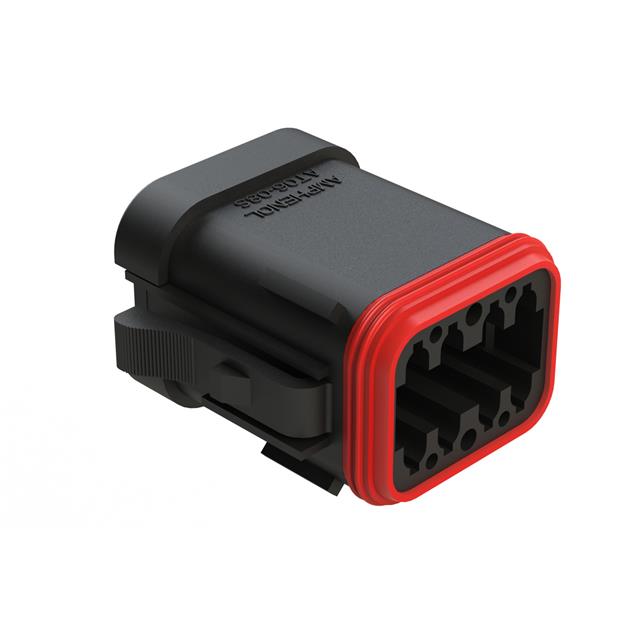

McGill Microwave Systems AT06-08SB-EC01	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	Cap (Cover)	Thermoplastic	Crimp	8	125 °C	-55 °C

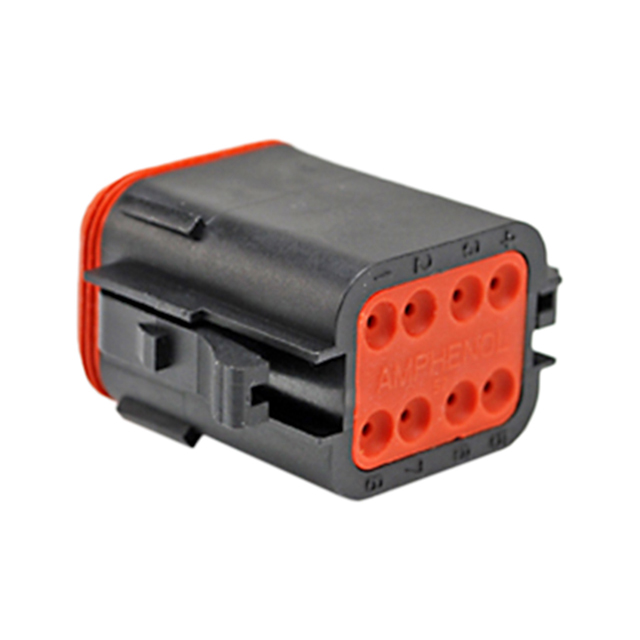

McGill Microwave Systems AT06-08SB	Contacts Not Included	Plug	Female Socket	Latch Lock	2	Black	Free Hanging (In-Line)	Sealed	Thermoplastic	Crimp	8	125 °C	-55 °C
