Specification	R87F-A1A15HP

Air Flow	110.7 CFM
Approval Agency	UL, CSA
Bearing Type	Ball
Current Rating	0.22 A
Fan Type	Tubeaxial
Material - Blade	PC, Polycarbonate
Material - Frame	Aluminum
Noise	42 dB
Operating Temperature (Max)	158 °F
Operating Temperature (Min)	-22 °F
Power (Watts)	15 W
RPM	2750 RPM
Size / Dimension Height	120 mm
Size / Dimension Length	120 mm
Size / Dimension Shape	Square
Static Pressure	0.374 in H2O
Termination	2 Terminals
Termination Count	2
Voltage - Rated	100 VAC/DC
Weight	1.2 lbs
Width	38 mm

R87F Series

AC Fans Tube Axial Fan

Part	Fan Accessory Type	For Use With/Related Products	Material	Fits Fan Size	Fits Fan Size (Shape)	Fits Fan Size Length	Fits Fan Size Width	Features	Termination Count	Termination	Static Pressure	Noise	Voltage - Rated	Operating Temperature (Max)	Operating Temperature (Min)	Bearing Type	Air Flow	Fan Type	Width	RPM	Weight	Size / Dimension Height	Size / Dimension Shape	Size / Dimension Length	Power (Watts)	Approval Agency	Material - Frame	Material - Blade	Current Rating
Omron Electronics Inc-EMC Div R87F-FL80	Filter Screen	R87F/R87T Series	Plastic	80 mm	Sq	80 mm	80 mm	Filters
Omron Electronics Inc-EMC Div R87F-FG80	Finger Guard	R87F/R87T Series	Metal	80 mm	Sq	80 mm	80 mm	5 Rings
Omron Electronics Inc-EMC Div R87F-A4A13HP									2	2 Terminals	0.177 in H2O	39 dB	200 VDC	158 °F	-22 °F	Ball	78.5 CFM	Tubeaxial	25 mm	2400 RPM	0.772 lb	120 mm	Square	120 mm	14 W	CSA UL	Aluminum	PC Polycarbonate	78 mA
Omron Electronics Inc-EMC Div R87F-A3A85HP												43 dB	115 V			Ball	32.1 CFM	Tubeaxial		3250 RPM					8 W	CSA UL			97 mA
Omron Electronics Inc-EMC Div R87F-A3A15HP									2	2 Terminals	0.374 in H2O	42 dB	115 V	158 °F	-22 °F	Ball	110.7 CFM	Tubeaxial	38 mm	2750 RPM	1.2 lbs	120 mm	Square	120 mm	15 W	CSA UL	Aluminum	PC Polycarbonate	0.18 A
Omron Electronics Inc-EMC Div R87F-A1A15HP									2	2 Terminals	0.374 in H2O	42 dB	100 VAC/DC	158 °F	-22 °F	Ball	110.7 CFM	Tubeaxial	38 mm	2750 RPM	1.2 lbs	120 mm	Square	120 mm	15 W	CSA UL	Aluminum	PC Polycarbonate	0.22 A
Omron Electronics Inc-EMC Div R87F-FL120S	Filter Screen	R87F/R87T Series	Aluminum	120 mm	Sq	120 mm	120 mm	Filters
Omron Electronics Inc-EMC Div R87F-A4A13LP									2	2 Terminals	0.079 in H2O	32 dB	200 VDC	158 °F	-22 °F	Ball	53.5 CFM	Tubeaxial	25 mm	1700 RPM	0.772 lb	120 mm	Square	120 mm	12 W	CSA UL	Aluminum	PC Polycarbonate	0.055 A
Omron Electronics Inc-EMC Div R87F-A4A15HP									2	2 Terminals	0.374 in H2O	42 dB	200 VDC	158 °F	-22 °F	Ball	110.7 CFM	Tubeaxial	38 mm	2750 RPM	1.2 lbs	120 mm	Square	120 mm	15 W	CSA UL	Aluminum	PC Polycarbonate	100 mA

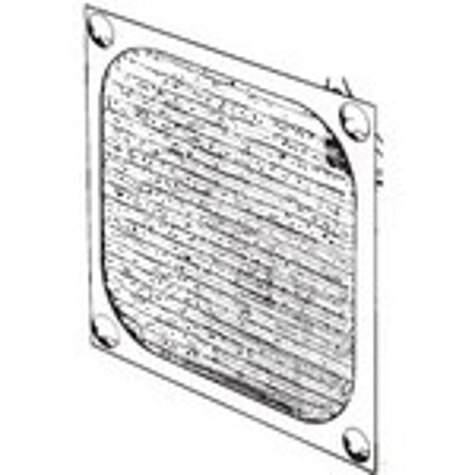

Omron Electronics Inc-EMC Div R87F-FL90	Filter Screen	R87F Series	Plastic	92 mm	Sq	92 mm	92 mm	Filters
