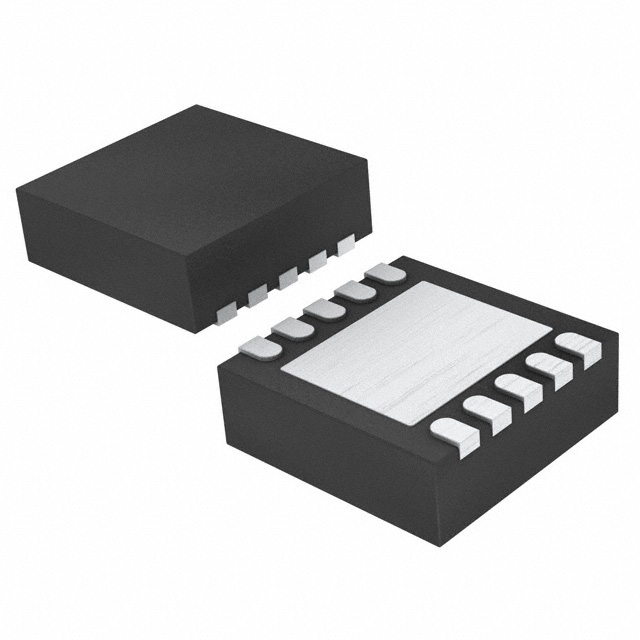

TPS7A9201DSKT
ActiveTexas Instruments
2-A, LOW-NOISE, HIGH-PSRR, ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH HIGH-ACCURACY 10-SON -40 TO 125
Deep-Dive with AI
Search across all available documentation for this part.
TPS7A9201DSKT
ActiveTexas Instruments
2-A, LOW-NOISE, HIGH-PSRR, ADJUSTABLE ULTRA-LOW-DROPOUT VOLTAGE REGULATOR WITH HIGH-ACCURACY 10-SON -40 TO 125
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | TPS7A9201DSKT | TPS7A9201 Series |
|---|---|---|
| Control Features | Power Good, Soft Start, Enable | Power Good, Soft Start, Enable |
| Current - Output | 2 A | 2 A |
| Current - Quiescent (Iq) | - | 3.5 mA |
| Current - Supply (Max) | - | 4 mA |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Regulators | 1 | 1 |
| Operating Temperature [Max] | 125 ¯C | 125 ¯C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Output Configuration | Positive | Positive |
| Output Type | Adjustable | Adjustable |
| Package / Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Protection Features | Over Current, Soft Start, Under Voltage Lockout (UVLO), Over Temperature | Over Current, Soft Start, Under Voltage Lockout (UVLO), Over Temperature |
| PSRR | 40 dB | 40 dB |
| Supplier Device Package | 10-SON (2.5x2.5) | 10-SON (2.5x2.5) |
| Voltage - Input (Max) [Max] | 6.5 V | 6.5 V |
| Voltage - Output (Max) [Max] | 5.2 V | 5.2 V |
| Voltage - Output (Min/Fixed) | 0.8 V | 0.8 V |
| Voltage Dropout (Max) [Max] | 0.4 V | 0.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
TPS7A9201 Series
2-A, low-noise, high-PSRR, adjustable ultra-low-dropout voltage regulator with high-accuracy
| Part | Voltage - Output (Max) [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Output Type | Control Features | Voltage - Output (Min/Fixed) | Mounting Type | Voltage - Input (Max) [Max] | Protection Features | Output Configuration | Current - Output | PSRR | Voltage Dropout (Max) [Max] | Package / Case | Supplier Device Package | Number of Regulators | Current - Supply (Max) [Max] | Current - Quiescent (Iq) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Texas Instruments TPS7A9201DSKTThe TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
The TPS7A92 output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A92 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.
With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A92 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)].
The TPS7A92 is designed to power noise-sensitive components such as those found in high-speed communication, video, medical, or test and measurement applications. The very low 4.6-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs.
The TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
The TPS7A92 output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A92 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.
With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A92 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)].
The TPS7A92 is designed to power noise-sensitive components such as those found in high-speed communication, video, medical, or test and measurement applications. The very low 4.6-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs. | 5.2 V | 125 ¯C | -40 °C | Adjustable | Enable, Power Good, Soft Start | 0.8 V | Surface Mount | 6.5 V | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Positive | 2 A | 40 dB | 0.4 V | 10-WFDFN Exposed Pad | 10-SON (2.5x2.5) | 1 | ||
Texas Instruments TPS7A9201DSKRThe TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
The TPS7A92 output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A92 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.
With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A92 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)].
The TPS7A92 is designed to power noise-sensitive components such as those found in high-speed communication, video, medical, or test and measurement applications. The very low 4.6-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs.
The TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
The TPS7A92 output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A92 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.
With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A92 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)].
The TPS7A92 is designed to power noise-sensitive components such as those found in high-speed communication, video, medical, or test and measurement applications. The very low 4.6-µVRMSoutput noise and wideband PSRR (40 dB at 1 MHz) minimizes phase noise and clock jitter. These features maximize performance of clocking devices, ADCs, and DACs. | 5.2 V | 125 ¯C | -40 °C | Adjustable | Enable, Power Good, Soft Start | 0.8 V | Surface Mount | 6.5 V | Over Current, Over Temperature, Soft Start, Under Voltage Lockout (UVLO) | Positive | 2 A | 40 dB | 0.4 V | 10-WFDFN Exposed Pad | 10-SON (2.5x2.5) | 1 | 4 mA | 3.5 mA |
Description
General part information
TPS7A9201 Series
The TPS7A92 is a low-noise (4.8 µVRMS), low-dropout (LDO) voltage regulator capable of sourcing 2 A with only 180 mV of dropout.
The TPS7A92 output is adjustable with external resistors from 0.8 V to 5.2 V. The TPS7A92 wide input-voltage range supports operation as low as 1.4 V and up to 6.5 V.
With 1% output voltage accuracy (over line, load, and temperature) and soft-start capabilities to reduce in-rush current, the TPS7A92 is ideal for powering sensitive analog low-voltage devices [such as voltage-controlled oscillators (VCOs), analog-to-digital converters (ADCs), digital-to-analog converters (DACs), high-end processors, and field-programmable gate arrays (FPGAs)].
