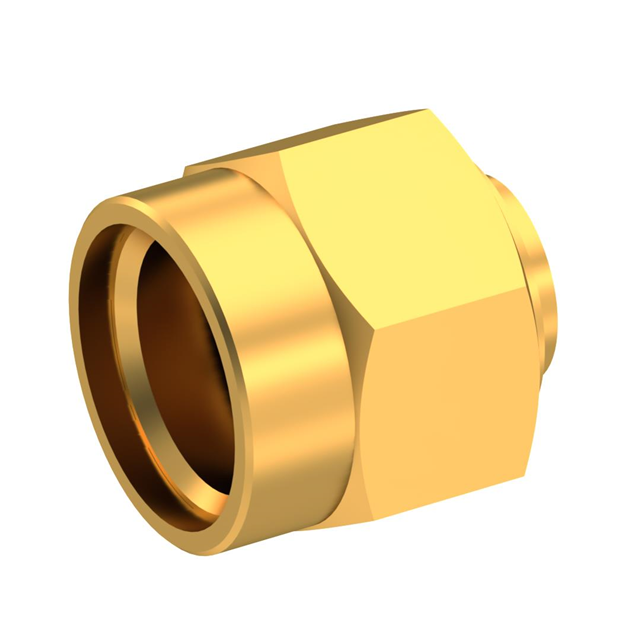

Specification	9301-1063-009

Body Finish	Gold
Body Material	Stainless Steel
Cable Group	RG-402
Cable Group Diameter (Semi Rigid)	0.141 in
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMA
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded
Frequency - Max	18 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	500 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder
Voltage Rating	500 V

9301-1063 Series

Part	Voltage Rating	Center Contact Plating	Operating Temperature (Max)	Operating Temperature (Min)	Dielectric Material	Mating Cycles	Body Material	Body Finish	Housing Color	Cable Group Diameter (Semi Rigid)	Cable Group	Impedance	Center Contact Material	Shield Termination	Contact Termination	Connector Style	Number of Ports	Fastening Type	Frequency - Max	Mounting Type	Connector Type
Radiall USA, Inc. 9301-1063-009	500 V	Gold	105 °C	-65 °C	Polytetrafluoroethylene (PTFE)	500 cycles	Stainless Steel	Gold	Gold	0.141 in	RG-402	50 Ohm	Brass	Solder	Solder	SMA	1	Threaded	18 GHz	Free Hanging (In-Line)	Male Pin Plug

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

3D models and CAD resources for this part

Technical documentation and resources

No documents available
