LWB-101-3.0(100)

Active

TE Connectivity Aerospace, Defense and Marine

GRD BRAID TUBE 0.12"DIAX328.1'

Search across all available documentation for this part.

Active

TE Connectivity Aerospace, Defense and Marine

GRD BRAID TUBE 0.12"DIAX328.1'

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	3	$ 2058.78

General part information

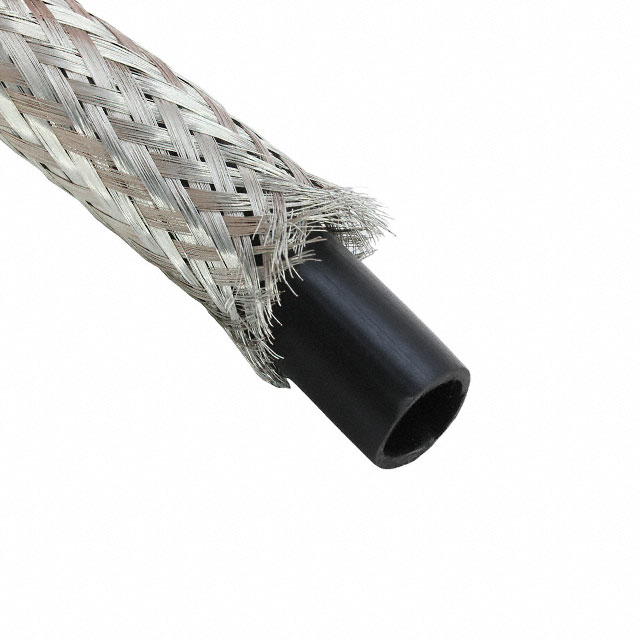

Tubular Ground Braid 0.118" (3.00mm) - Inner Dia X 328.1' (100.00m)

Technical documentation and resources

Specification	LWB-101-3.0(100)	LWB-1 Series

	-	-
Length	328.1 ft	3.3 - 328.1 ft
Length	100 m	1 - 100 m
Length	-	Enter Number of Meters in Order Quantity
Material	Copper, Tin Plated	Copper, Tin Plated, Copper, Nickel Plated
Size, Supplied [diameter]	3 mm	3 - 20 mm
Size, Supplied [diameter]	0.118 in	0.118 - 0.787 in
Spool Size	-	50 m
Spool Size	-	164 ft
Type	Tubular	Tubular

Part	Material	Length	Length	Size, Supplied [diameter]	Size, Supplied [diameter]	Type	Spool Size	Spool Size	Length
TE Connectivity Aerospace, Defense and Marine LWB-101-6.0(50)	Copper, Tin Plated	50 m	164 ft	0.236 in	6 mm	Tubular
TE Connectivity Aerospace, Defense and Marine LWB-101-20.0 (50)	Copper, Tin Plated	1 m	3.3 ft	0.787 in	20 mm	Tubular	50 m	164 ft	Enter Number of Meters in Order Quantity
TE Connectivity Aerospace, Defense and Marine LWB-101-3.0(100)	Copper, Tin Plated	100 m	328.1 ft	0.118 in	3 mm	Tubular
TE Connectivity Aerospace, Defense and Marine LWB-103-10.0(50)	Copper, Nickel Plated	50 m	164 ft	0.394 in	10 mm	Tubular
TE Connectivity Aerospace, Defense and Marine LWB-101-6.0(100)	Copper, Tin Plated	100 m	328.1 ft	0.236 in	6 mm	Tubular
TE Connectivity Aerospace, Defense and Marine LWB-103-20.0(100)
