115-93-632-41-003000

Active

Mill-Max Manufacturing Corp.

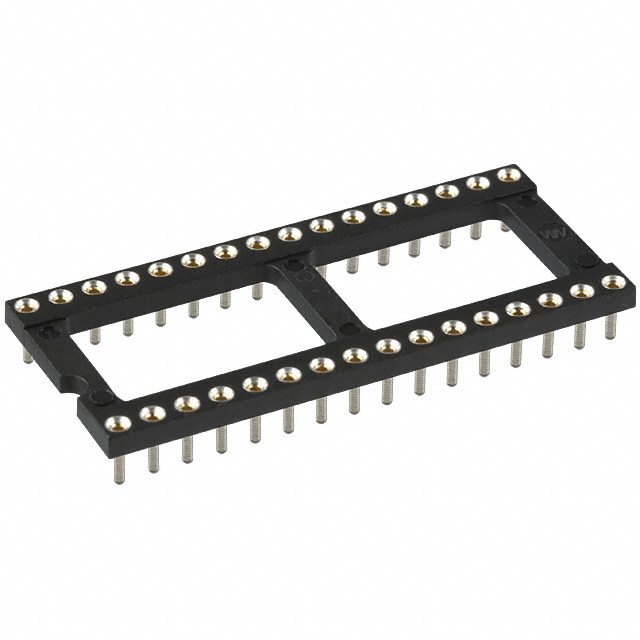

CONN IC DIP SOCKET 32POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

115-93-632-41-003000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 32POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	115-93-632-41-003000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin-Lead
Contact Finish Thickness - Mating	30 Áin
Contact Finish Thickness - Mating	0.76 Ám
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2 x 16
Number of Positions or Pins (Grid) [custom]	32
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length [x]	0.108 in
Termination Post Length [x]	2.74 mm
Type	DIP
Type	0.6 in
Type	15.24 mm

115-93 Series

Part	Termination	Termination Post Length [x]	Termination Post Length [x]	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Contact Material - Mating	Features	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Current Rating (Amps)	Contact Material - Post	Pitch - Post	Pitch - Post	Housing Material	Pitch - Mating	Pitch - Mating	Type	Type	Type	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid)	Material Flammability Rating	Termination Post Length	Termination Post Length
Mill-Max Manufacturing Corp. 115-93-650-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C	25	2	50	3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 115-93-632-41-003000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	2 x 16	32
Mill-Max Manufacturing Corp. 115-93-314-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			14
Mill-Max Manufacturing Corp. 115-93-964-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.9 in	22.86 mm			64	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-632-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm	2 x 16	32		UL94 V-0
Mill-Max Manufacturing Corp. 115-93-324-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			24	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-322-61-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			22	UL94 V-0
Mill-Max Manufacturing Corp. 115-93-650-41-003000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C	25	2	50	3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.6 in	15.24 mm
Mill-Max Manufacturing Corp. 115-93-308-41-001000	Solder	0.108 in	2.74 mm	Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.3 "	7.62 mm			8
Mill-Max Manufacturing Corp. 115-93-420-61-003000	Solder			Gold	30 Áin	0.76 Ám	200 µin	5.08 µm	Through Hole	Beryllium Copper	Open Frame	Tin-Lead	-55 °C	125 °C				3 A	Brass Alloy	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	0.1 in	2.54 mm	DIP	0.4 in	10.16 mm			20	UL94 V-0	2.41 mm	0.095 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 4.64
		10	$ 3.55
		25	$ 3.20
		50	$ 2.97
		100	$ 2.75
		250	$ 2.50
		500	$ 2.33
		1000	$ 2.27

Description

General part information

115-93 Series

32 (2 x 16) Pos DIP, 0.6" (15.24mm) Row Spacing Socket Gold Through Hole

Documents

Technical documentation and resources

No documents available
