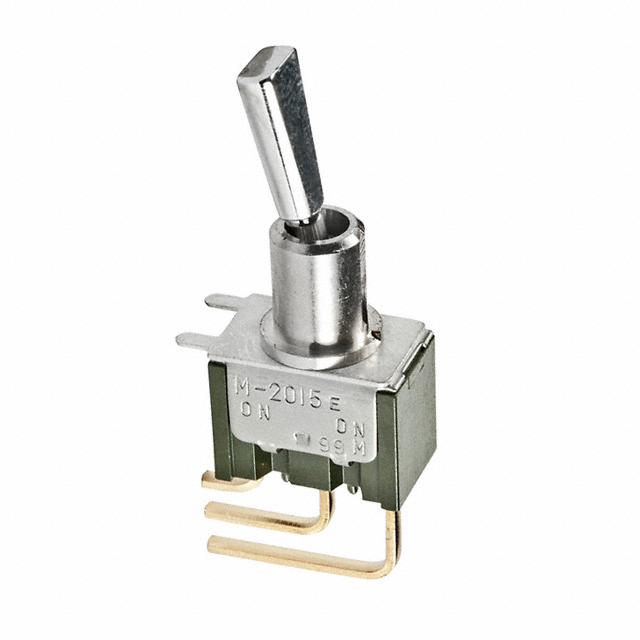

M2015ES2G45
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 0.4VA 28V
Deep-Dive with AI
Search across all available documentation for this part.
M2015ES2G45
ObsoleteNKK Switches
SWITCH TOGGLE SPDT 0.4VA 28V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M2015ES2G45 |
|---|---|
| Actuator Length [x] | 11.4 mm |
| Actuator Material | Brass, Chrome Plated |
| Actuator Type | Flatted |
| Bushing Thread | Unthreaded |
| Circuit | SPDT |
| Current Rating (Amps) | 0.4 VA |
| Electrical Life | 50000 Cycles |
| Features | Epoxy Sealed Terminals |
| Illumination | Non-Illuminated |
| Mounting Type | Through Hole, Vertical, Right Angle |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -30 ░C |
| Panel Cutout Dimensions [diameter] | 6.5 mm |
| Switch Function | On-Mom |
| Termination Style | PC Pin |
| Voltage Rating - AC | 28 V |
| Voltage Rating - DC | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 9.04 | |
| 10 | $ 8.14 | |||
| 25 | $ 7.80 | |||
| 50 | $ 7.42 | |||
| 100 | $ 7.12 | |||
| 250 | $ 6.69 | |||
Description
General part information
M2015ES Series
Toggle Switch SPDT Through Hole, Right Angle, Vertical
Documents
Technical documentation and resources
