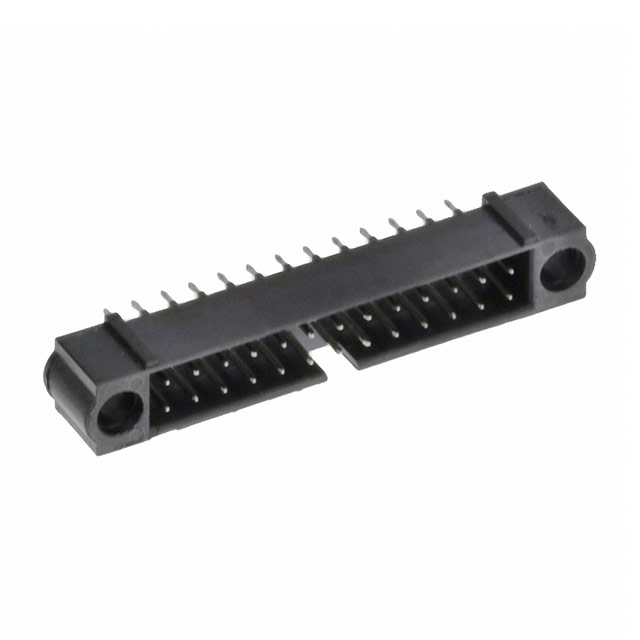

Specification	M225-5202646

Connector Type	Plug
Contact Finish - Mating	Tin
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Post	118.1 µin
Contact Length - Post	0.13 in
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-In
Features	Polarizing Key, Mating Flange
Insulation Color	Black
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	26
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch - Mating	0.079 in
Row Spacing - Mating	0.079 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder

M225-520 Series

Part	Contact Finish - Post	Contact Finish Thickness - Mating	Insulation Material	Contact Material	Mounting Type	Number of Positions Loaded	Contact Type	Number of Positions	Pitch - Mating	Insulation Color	Connector Type	Current Rating	Row Spacing - Mating	Shrouding	Features	Insulation Height	Fastening Type	Contact Shape	Number of Rows	Style	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Material Flammability Rating	Contact Finish - Mating	Contact Length - Post	Contact Finish Thickness - Post
Harwin Inc. M225-5202646	Tin	118.1 µin	Glass Filled Polyphenylene Sulfide (PPS)	Phosphor Bronze	Through Hole	All	Male Pin	26	0.079 in	Black	Plug	3 A	0.079 in	Shrouded - 4 Wall	Mating Flange Polarizing Key	0.22 in	Push-In	Circular	2	Board Cable/Wire	Solder	125 °C	-55 °C	UL94 V-0	Tin	0.13 in	118.1 µin
Harwin Inc. M225-5203446	Tin	118.1 µin	Glass Filled Polyphenylene Sulfide (PPS)	Phosphor Bronze	Through Hole	All	Male Pin	34	0.079 in	Black	Plug	3 A	0.079 in	Shrouded - 4 Wall	Mating Flange Polarizing Key	0.22 in	Push-In	Circular	2	Board Cable/Wire	Solder	125 °C	-55 °C	UL94 V-0	Tin	0.13 in	118.1 µin
