CLM4B-GKW-CWBYA693

Unknown

CreeLED, Inc.

LED GREEN CLEAR 4PLCC SMD

CLM4B-GKW-CWBYA693

Unknown

CreeLED, Inc.

LED GREEN CLEAR 4PLCC SMD

Description Specifications Series Pricing CAD Documents

Description

General part information

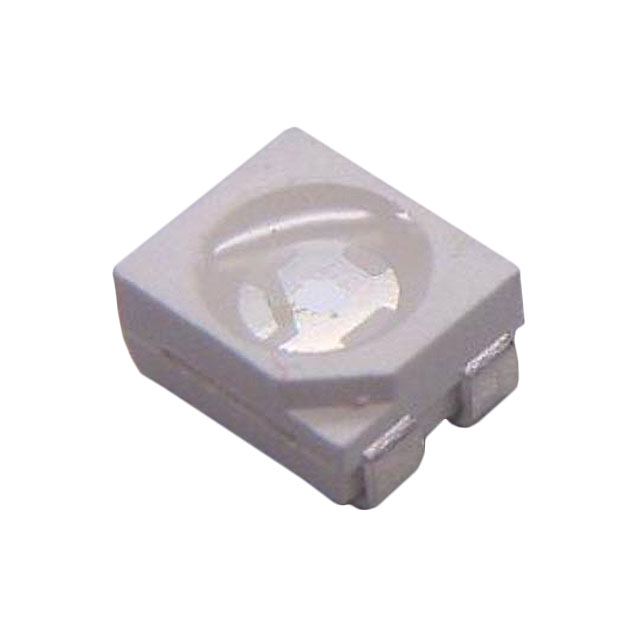

CLM4B Series

Green 527nm LED Indication - Discrete 3.6V 4-PLCC

Technical Specifications

Parameters and characteristics for this part

Specification	CLM4B-GKW-CWBYA693

Color	Green
Configuration	Standard
Current - Test	30 mA
Height (Max)	2.05 mm
Lens Color	Colorless
Lens Style	Round, Flat Top
Lens Transparency	Clear
Millicandela Rating	2475 mcd
Mounting Type	Surface Mount
Package / Case	4-PLCC
Package Name	4-PLCC
Size / Dimension Length	3.2 mm
Size / Dimension Width	2.7 mm
Voltage - Forward (Vf) (Typ)	3.6 V
Wavelength - Dominant	527 nm

CLM4B Series

Part	Size / Dimension Length	Size / Dimension Width	Lens Style	Wavelength - Dominant	Package Name	Height (Max)	Mounting Type	Package / Case	Millicandela Rating	Current - Test	Color	Voltage - Forward (Vf) (Typ)	Lens Transparency	Lens Color	Configuration	Lens Diameter
CreeLED, Inc. CLM4B-QKW-CXAYAUU3	3.2 mm	2.7 mm	Flat Top Rectangle	629 nm	4-PLCC	2.05 mm	Surface Mount	4-PLCC	1800 mcd	50 mA	Red	2.6 V
CreeLED, Inc. CLM4B-GKW-CWBYA693	3.2 mm	2.7 mm	Flat Top Round	527 nm	4-PLCC	2.05 mm	Surface Mount	4-PLCC	2475 mcd	30 mA	Green	3.6 V	Clear	Colorless	Standard
CreeLED, Inc. CLM4B-BKC-CUAVA453	3.2 mm	1.3 mm	Flat Top Round	470 nm	4-PLCC	2.1 mm	Surface Mount	4-PLCC	675 mcd	30 mA	Blue	3.1 V				2.2 mm
CreeLED, Inc. CLM4B-RKC-CWBXAAA3	3.2 mm	1.3 mm	Flat Top Round	624 nm	4-PLCC	2.1 mm	Surface Mount	4-PLCC	1820 mcd	50 mA	Red	2.5 V				2.2 mm
CreeLED, Inc. CLM4B-BKC-CTBVA353	3.2 mm	1.3 mm	Flat Top Round	468 nm	4-PLCC	2.1 mm	Surface Mount	4-PLCC	627.5 mcd	30 mA	Blue	3.1 V				2.2 mm
CreeLED, Inc. CLM4B-AKB-CWBXB353	3.2 mm	2.7 mm	Flat Top Round	591 nm	4-PLCC	2.05 mm	Surface Mount	4-PLCC	2100 mcd	50 mA	Amber	2.4 V	Clear	Colorless	Standard
CreeLED, Inc. CLM4B-RKC-CWBXAAA3	3.2 mm	2.8 mm	Flat Top Round	624 nm	4-PLCC	2.1 mm	Surface Mount	4-PLCC	1820 mcd	50 mA	Red	2.5 V				2.2 mm
CreeLED, Inc. CLM4B-RKB-CWAXBAA3	3.2 mm	2.7 mm	Flat Top Round	624 nm	4-PLCC	2.05 mm	Surface Mount	4-PLCC	1960 mcd	50 mA	Red	2.4 V			Standard
CreeLED, Inc. CLM4B-AKC-CWBXB353	3.2 mm	2.8 mm	Flat Top Round	592 nm	4-PLCC	2.1 mm	Surface Mount	4-PLCC	2100 mcd	50 mA	Amber	2.2 V				2.2 mm
CreeLED, Inc. CLM4B-BKB-CTBVA363	3.2 mm	2.7 mm	Flat Top Round	470 nm	4-PLCC	2.05 mm	Surface Mount	4-PLCC	628 mcd	30 mA	Blue	3.6 V			Standard

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

CLM4B-GKW-CWBYA693 | Datasheet
