Specification	SMP-FS-C07-5

Body Finish	Gold
Body Material	Beryllium Copper
Cable Group	RG-405
Cable Group Diameter (Semi Rigid)	0.086 in
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	SMP
Connector Type	Plug, Female Socket
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max	26.5 GHz
Housing Color	Gold
Impedance	50 Ohm
Mating Cycles	100 cycles
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature (Max)	165 °C
Operating Temperature (Min)	-65 °C
Shield Termination	Solder

SMP-FS Series

Part	Center Contact Material	Features	Housing Color	Contact Termination	Number of Ports	Impedance	Frequency - Max	Fastening Type	Shield Termination	Connector Style	Connector Type	Mounting Type	Center Contact Plating	Body Finish	Mating Cycles	Body Material	Dielectric Material	Operating Temperature (Min)	Operating Temperature (Max)	Cable Group Diameter (Semi Rigid)	Cable Group	Includes Total Count	Includes	Contact Material	Contact Finish	Cable Group Size
McGill Microwave Systems SMP-FS-LDPCT	Brass	Limited Detent	Gold	Solder	1	50 Ohm	12 Gbps	Snap-On	Solder	SMP	Jack Male Pin	Through Hole	Gold	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C
McGill Microwave Systems SMP-FS-C07-5	Beryllium Copper		Gold	Solder	1	50 Ohm	26.5 GHz	Snap-On	Solder	SMP	Female Socket Plug	Free Hanging (In-Line)	Gold	Gold	100 cycles	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C	0.086 in	RG-405
McGill Microwave Systems SMP-FS-FDPCT	Brass	Full Detent	Gold	Solder	1	50 Ohm	12 Gbps	Snap-On	Solder	SMP	Jack Male Pin	Through Hole	Gold	Gold	500 cycles	Brass	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C
McGill Microwave Systems SMP-FS-C08-1-R	Beryllium Copper		Gold	Solder	1	50 Ohm	6000 MHz	Snap-On	Crimp	SMP	Female Socket Plug	Free Hanging (In-Line)	Gold	Gold	100 cycles	Beryllium Copper Brass	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C		316 RG-174	3 pcs	Connector Contact Ferrule

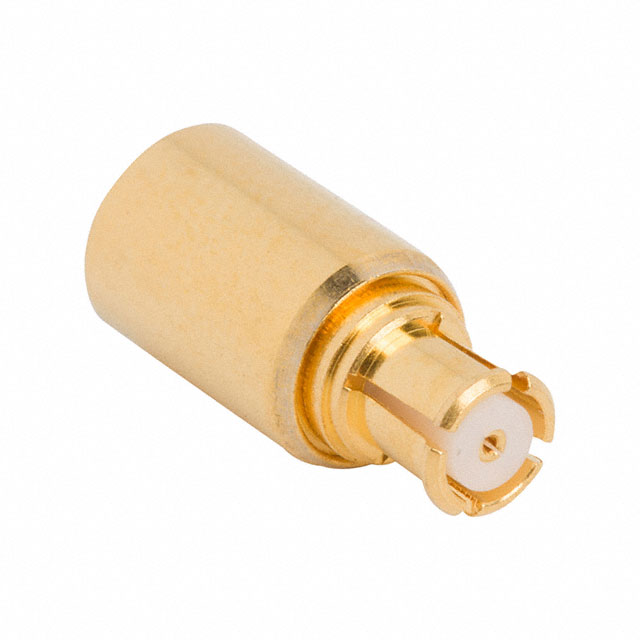

McGill Microwave Systems SMP-FS-T2						50 Ohm	26.5 GHz			SMP	Female Socket Plug	Cap Free Hanging		Gold		Beryllium Copper	Polytetrafluoroethylene (PTFE)							Beryllium Copper	Gold
McGill Microwave Systems SMP-FS-C19	Beryllium Copper		Gold	Solder	1	50 Ohm	6000 MHz	Snap-On	Crimp	SMP	Female Socket Plug	Free Hanging (In-Line)	Gold	Gold	100 cycles	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C		RG-178	3 pcs	Connector Contact Ferrule

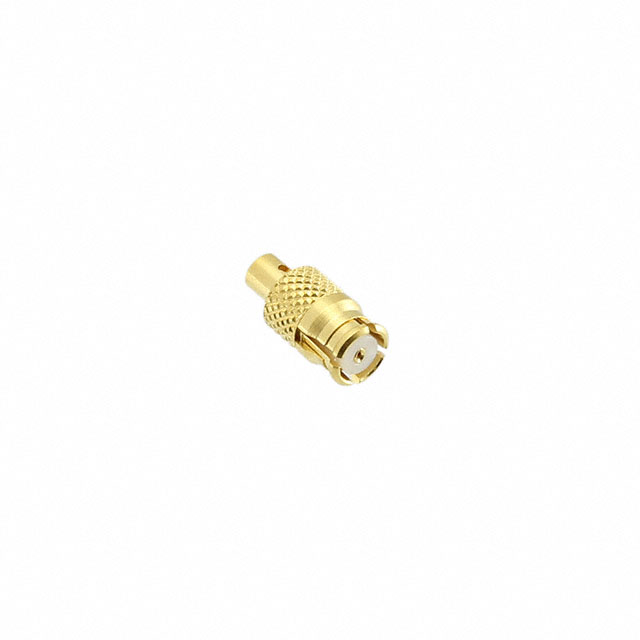

McGill Microwave Systems SMP-FS-C09	Beryllium Copper		Gold	Solder	1	50 Ohm	3 GHz	Snap-On	Solder	SMP	Female Socket Jack	Free Hanging (In-Line)	Gold	Gold	100 cycles	Beryllium Copper	Polytetrafluoroethylene (PTFE)	-65 °C	165 °C		Semi Rigid					0.047 "
