Specification	32562

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Serrated Termination
Insulation	Insulated
Insulation Diameter (Max)	0.14 in
Insulation Diameter (Min)	0.105 in
Length - Overall	0.768 in
Length - Ring Center to Termination	0.203 in
Length - Termination	0.404 in
Material - Insulation	Polyamide, PA, Nylon
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	6 Stud
Terminal Type	Flanged
Termination	Crimp
Tongue Inside Opening	0.145 in
Width - Outer Edges	0.296 in
Wire Gauge (AWG) (Max)	22 AWG
Wire Gauge (AWG) (Min)	16 AWG

3256 Series

Heavy Duty Power Connectors TERM AMPOWER 350MCM 0 UNPLTD

Part	Contact Finish	Contact Material	Diameter - Barrel ID	Diameter - Barrel OD	Mounting Type	Length - Overall	Tab Thickness	Insulation	Terminal Type	Width - Outer Edges	Wire Gauge	Termination	Terminal Style	Stud/Tab Size	Color	Wire Gauge (AWG) (Min)	Wire Gauge (AWG) (Max)	Features	Length - Termination	Material - Insulation	Tongue Inside Opening	Length - Ring Center to Termination	Insulation Diameter (Min)	Insulation Diameter (Max)	Diameter - Ring ID	Stud/Tab Size
TE Connectivity AMP Connectors 325614	Tin	Copper	0.648 in	0.98 in	Free Hanging (In-Line)	4.94 in	0.13 in	Non-Insulated	Standard	1.19 in	4/0 AWG	Barrel Crimb	No Stud Hole
TE Connectivity AMP Connectors 32562	Tin	Copper			Free Hanging (In-Line)	0.768 in		Insulated	Flanged	0.296 in		Crimp		6 Stud	Red	16 AWG	22 AWG	Serrated Termination	0.404 in	Nylon PA Polyamide	0.145 in	0.203 in	0.105 in	0.14 in

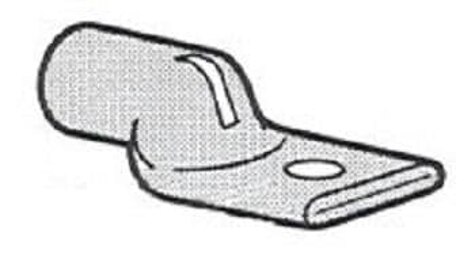

TE Connectivity AMP Connectors 325605	Tin	Copper	0.648 in	0.807 in	Free Hanging (In-Line)	2.45 in	0.13 in	Non-Insulated	Standard	1.19 in	4/0 AWG	Barrel Crimb	Single Stud Hole	0.5 Stud											0.515 in
TE Connectivity AMP Connectors 325603	Tin	Copper	0.648 in	0.807 in	Free Hanging (In-Line)	2.45 in	0.13 in	Non-Insulated	Standard	1.19 in	4/0 AWG	Barrel Crimb	Single Stud Hole	0.375 in											0.39 in	3 Stud 8 Stud
