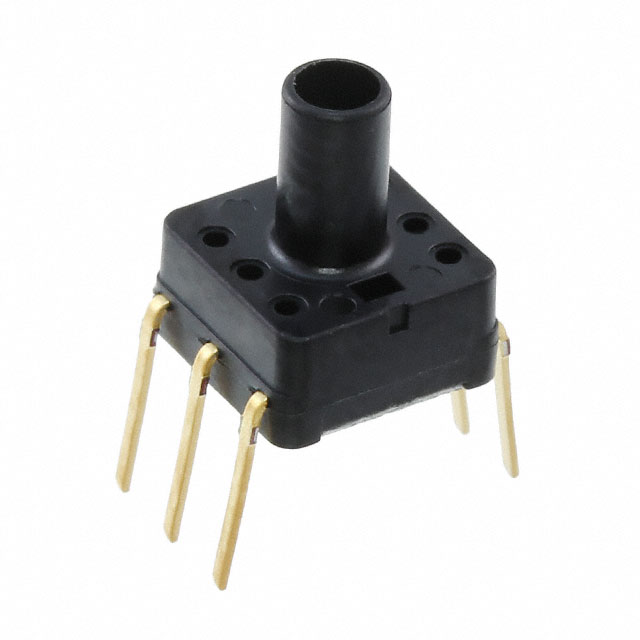

ADP5161

Panasonic Industrial Automation Sales

SENSOR 72.52PSIG 0.12" 4.5V

Search across all available documentation for this part.

Panasonic Industrial Automation Sales

SENSOR 72.52PSIG 0.12" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	ADP5161

Accuracy	1.25 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure	1000 kPa
Maximum Pressure	145.04 PSI
Mounting Type	Through Hole
Operating Pressure	72.52 PSI
Operating Pressure	5 bar
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-10 °C
Output [Max]	4.5 V
Output [Min]	0 mV
Output Type	Analog Voltage
Package / Case	6-DIP Module
Port Size	Male - Tube
Port Size	3 mm, 0.12 "
Port Style	Barbless
Pressure Type	Vented Gauge
Termination Style	PC Pin

Part	Output Type	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Port Style	Operating Pressure	Operating Pressure	Applications	Features	Port Size	Port Size	Maximum Pressure	Maximum Pressure	Accuracy	Mounting Type	Pressure Type	Output [Max]	Output [Min]	Termination Style
Panasonic Industrial Automation Sales ADP5161	Analog Voltage	-10 °C	60 °C	6-DIP Module	Barbless	72.52 PSI	5 bar	Board Mount	Amplified Output Temperature Compensated	Male - Tube	0.12 " 3 mm	1000 kPa	145.04 PSI	1.25 %	Through Hole	Vented Gauge	4.5 V	0 mV	PC Pin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pressure Sensor 72.52PSI (500kPa) Vented Gauge Male - 0.12" (3mm) Tube 0 V ~ 4.5 V 6-DIP Module
