EM3782-36-1#

Active

Pomona Electronics

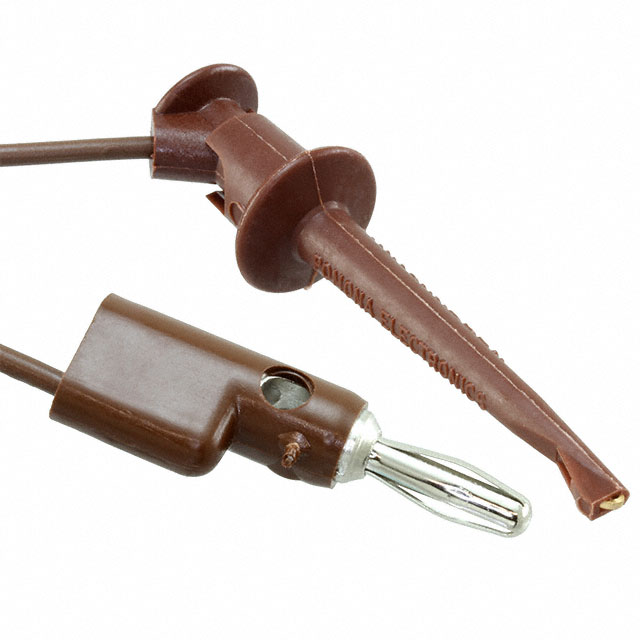

TEST LEAD BANANA TO GRABBER 36"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EM3782-36-1#

1st Connector	Single, Stackable, Banana Plug
2nd Connector	Mini Hook
Cable Length	36 in
Cable Length	914.4 mm
Configuration	Banana to Grabber, Hook
Contents	Brown
Contents	1 Cable
Current Rating (Amps)	5 A
Material - Insulation	Poly-Vinyl Chloride (PVC)
Stacking Method	Multi-Stacking, Front and Vertical
Type	Patch Cord
Voltage - Rated	300 V
Wire Gauge	20 AWG

EM3782 Series

Part	Type	Cable Length	Cable Length	Contents	Contents	Material - Insulation	1st Connector	Current Rating (Amps)	Configuration	Wire Gauge	Voltage - Rated	2nd Connector	Stacking Method
Pomona Electronics EM3782-36-1#	Patch Cord	36 in	914.4 mm	Brown	1 Cable	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-36-9#	Patch Cord	36 in	914.4 mm	1 Lead White		Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-12-7#	Patch Cord	12 in	304.8 mm	1 Lead Violet		Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-12-1#	Patch Cord	12 in	304.8 mm	Brown	1 Cable	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-48-8#	Patch Cord	48 in	1219.2 mm				Banana Plug Single Stackable		Banana to Grabber Hook	20 AWG		Mini Hook	Multi-Stacking Front and Vertical
Pomona Electronics EM3782-60-9#	Patch Cord	5 ft	1524 mm	1 Lead White		Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-36-3#	Patch Cord	36 in	914.4 mm				Banana Plug Single Stackable		Banana to Grabber Hook	20 AWG		Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-24-1#	Patch Cord	24 "	609.6 mm	Brown	1 Cable	Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking
Pomona Electronics EM3782-24-9#	Patch Cord	24 "	609.6 mm	1 Lead White		Poly-Vinyl Chloride (PVC)	Banana Plug Single Stackable	5 A	Banana to Grabber Hook	20 AWG	300 V	Mini Hook	Front and Vertical Multi-Stacking

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 10.49
		25	$ 10.19

Description

General part information

EM3782 Series

36.0" (914.40mm) Banana Plug, Single, Stackable To Mini Hook Patch Cord 300VDC
