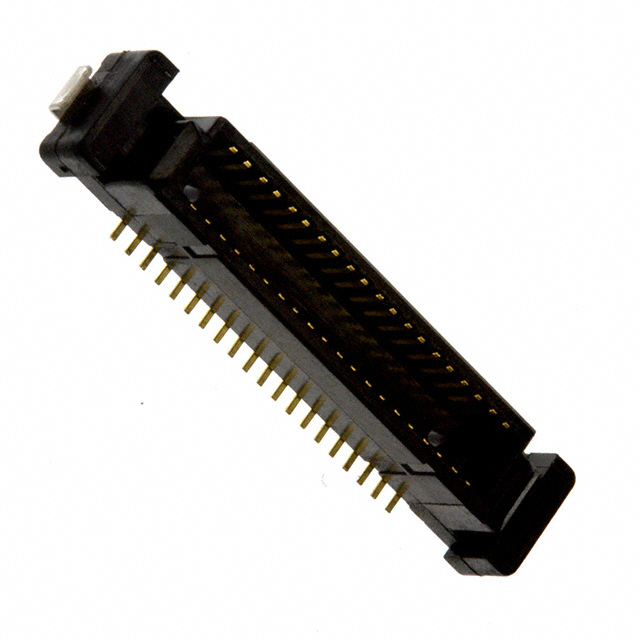

KX15-40K3DE

Active

JAE Electronics

CONN PLUG 40POS SMD GOLD

Search across all available documentation for this part.

Active

JAE Electronics

CONN PLUG 40POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	KX15-40K3DE

Contact Finish	Gold
Contact Finish Thickness	4 Áin
Contact Finish Thickness	0.1 Ám
Features	Solder Retention, Board Guide
Height Above Board	4.75 mm
Height Above Board [z]	0.187 in
Mated Stacking Heights	11 mm, 5 mm, 8 mm, 17 mm, 14 mm
Mounting Type	Surface Mount
Number of Positions	40
Number of Rows	2
Pitch [x]	0.8 mm
Pitch [x]	0.031 in

Part	Contact Finish	Mated Stacking Heights	Mounting Type	Number of Rows	Number of Positions	Contact Finish Thickness	Contact Finish Thickness	Pitch [x]	Pitch [x]	Features	Height Above Board [z]	Height Above Board	Height Above Board
JAE Electronics KX15-40K3DE	Gold	5 mm 8 mm 11 mm 14 mm 17 mm	Surface Mount	2	40	4 Áin	0.1 Ám	0.8 mm	0.031 in	Board Guide Solder Retention	0.187 in	4.75 mm
JAE Electronics KX15-40K3D-E1000E	Gold	5 mm 8 mm 11 mm 14 mm 17 mm	Surface Mount	2	40	4 Áin	0.1 Ám	0.8 mm	0.031 in	Board Guide Solder Retention	0.187 in	4.75 mm
JAE Electronics KX15-40K4DE	Gold	6 mm 9 mm 12 mm 15 mm 18 mm	Surface Mount	2	40	4 Áin	0.1 Ám	0.8 mm	0.031 in	Board Guide Solder Retention		5.74 mm	0.226 in
JAE Electronics KX15-40KLDL-E1000E	Gold		Surface Mount Right Angle	2	40	4 Áin	0.1 Ám	0.8 mm	0.031 in	Board Guide Solder Retention		5.74 mm	0.226 in
JAE Electronics KX15-40KLDLE	Gold		Surface Mount Right Angle	2	40	4 Áin	0.1 Ám	0.8 mm	0.031 in	Board Guide Solder Retention		5.74 mm	0.226 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

40 Position Connector Plug, Center Strip Contacts Surface Mount Gold
