ST72C334J4B6

Obsolete

STMicroelectronics

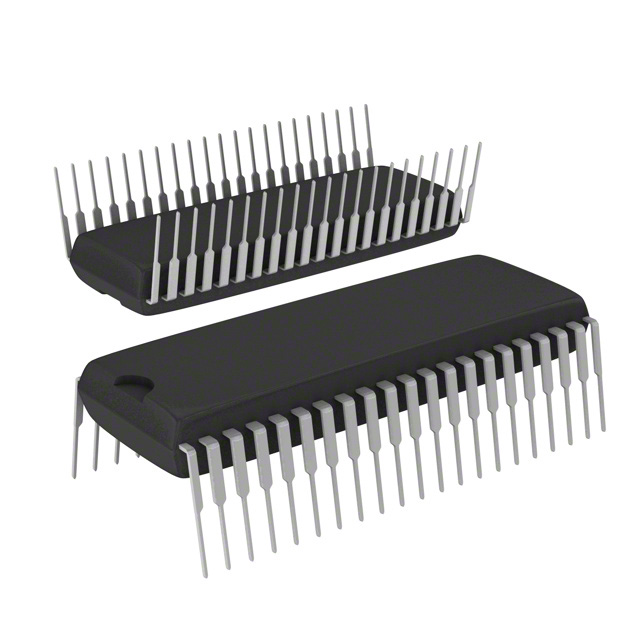

IC MCU 8BIT 16KB FLASH 42SDIP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ST72C334J4B6

Obsolete

STMicroelectronics

IC MCU 8BIT 16KB FLASH 42SDIP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST72C334J4B6

Connectivity	SPI, SCI
Core Processor	ST7
Core Size	8-Bit
Data Converters [custom]	6
Data Converters [custom]	8 b
EEPROM Size	256 x 8
Mounting Type	Through Hole
Number of I/O	32
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Oscillator Type	Internal
Package / Case	0.6 in
Package / Case	42-SDIP
Package / Case	15.24 mm
Peripherals	LVD, WDT, PWM, POR
Program Memory Size	16 KB
Program Memory Type	FLASH
RAM Size	512
Speed	16 MHz
Voltage - Supply (Vcc/Vdd) [Max]	5.5 V
Voltage - Supply (Vcc/Vdd) [Min]	3.2 V

ST72C Series

Part	Mounting Type	Package / Case	Package / Case	Package / Case	RAM Size	Program Memory Size	Operating Temperature [Max]	Operating Temperature [Min]	Connectivity	Core Size	Core Processor	Oscillator Type	Number of I/O	EEPROM Size	Data Converters [custom]	Data Converters [custom]	Voltage - Supply (Vcc/Vdd) [Min]	Voltage - Supply (Vcc/Vdd) [Max]	Program Memory Type	Peripherals	Speed	Data Converters	Package / Case [x]	Package / Case [y]	RAM Size	Supplier Device Package
STMicroelectronics ST72C334J4B6	Through Hole	0.6 in	42-SDIP	15.24 mm	512	16 KB	85 °C	-40 °C	SCI SPI	8-Bit	ST7	Internal	32	256 x 8	6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz
STMicroelectronics ST72C314J4T6	Surface Mount		44-LQFP		512	16 KB	85 °C	-40 °C	SCI SPI	8-Bit	ST7	Internal	44				3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz	A/D 8x8b
STMicroelectronics ST72C254G2M3/TR	Surface Mount		28-SOIC				125 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz		0.295 in	7.5 mm	256 x 8	28-SO
STMicroelectronics ST72C334J4T6	Surface Mount		44-LQFP		512	16 KB	85 °C	-40 °C	SCI SPI	8-Bit	ST7	Internal	32	256 x 8	6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz
STMicroelectronics ST72C254G1B6	Through Hole		32-SDIP			4 KB	85 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz				256 x 8
STMicroelectronics ST72C254G2M3	Surface Mount		28-SOIC				125 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz		0.295 in	7.5 mm	256 x 8	28-SO
STMicroelectronics ST72C254G2M6	Surface Mount		28-SOIC				85 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz		0.295 in	7.5 mm	256 x 8	28-SO
STMicroelectronics ST72C254G1M6	Surface Mount		28-SOIC			4 KB	85 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz		0.295 in	7.5 mm	256 x 8	28-SO
STMicroelectronics ST72C254G2B6	Through Hole		32-SDIP				85 °C	-40 °C	I2C SPI	8-Bit	ST7	Internal	22		6	8 b	3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz				256 x 8
STMicroelectronics ST72C334N4T6	Surface Mount		64-LQFP		512	16 KB	85 °C	-40 °C	SCI SPI	8-Bit	ST7	Internal	44	256 x 8			3.2 V	5.5 V	FLASH	LVD POR PWM WDT	16 MHz	A/D 8x8b

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

ST72C Series

ST7 ST7 Microcontroller IC 8-Bit 16MHz 16KB (16K x 8) FLASH
