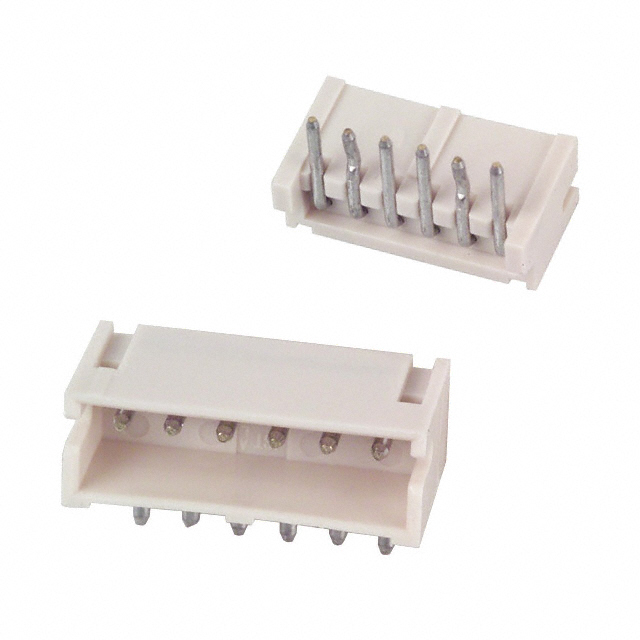

S6B-ZR
ActiveJST Sales America Inc.
CONN HEADER R/A 6POS 1.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | S6B-ZR |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Length - Mating [custom] | 2.4 mm |
| Contact Length - Mating [custom] | 0.094 in |
| Contact Length - Post [x] | 0.106 in |
| Contact Length - Post [x] | 2.69 mm |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Insulation Color | Natural |
| Insulation Height | 3.7 mm |
| Insulation Height | 0.146 " |
| Insulation Material | Polyamide (PA66), Nylon 6/6, Glass Filled |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 6 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 50 V |
